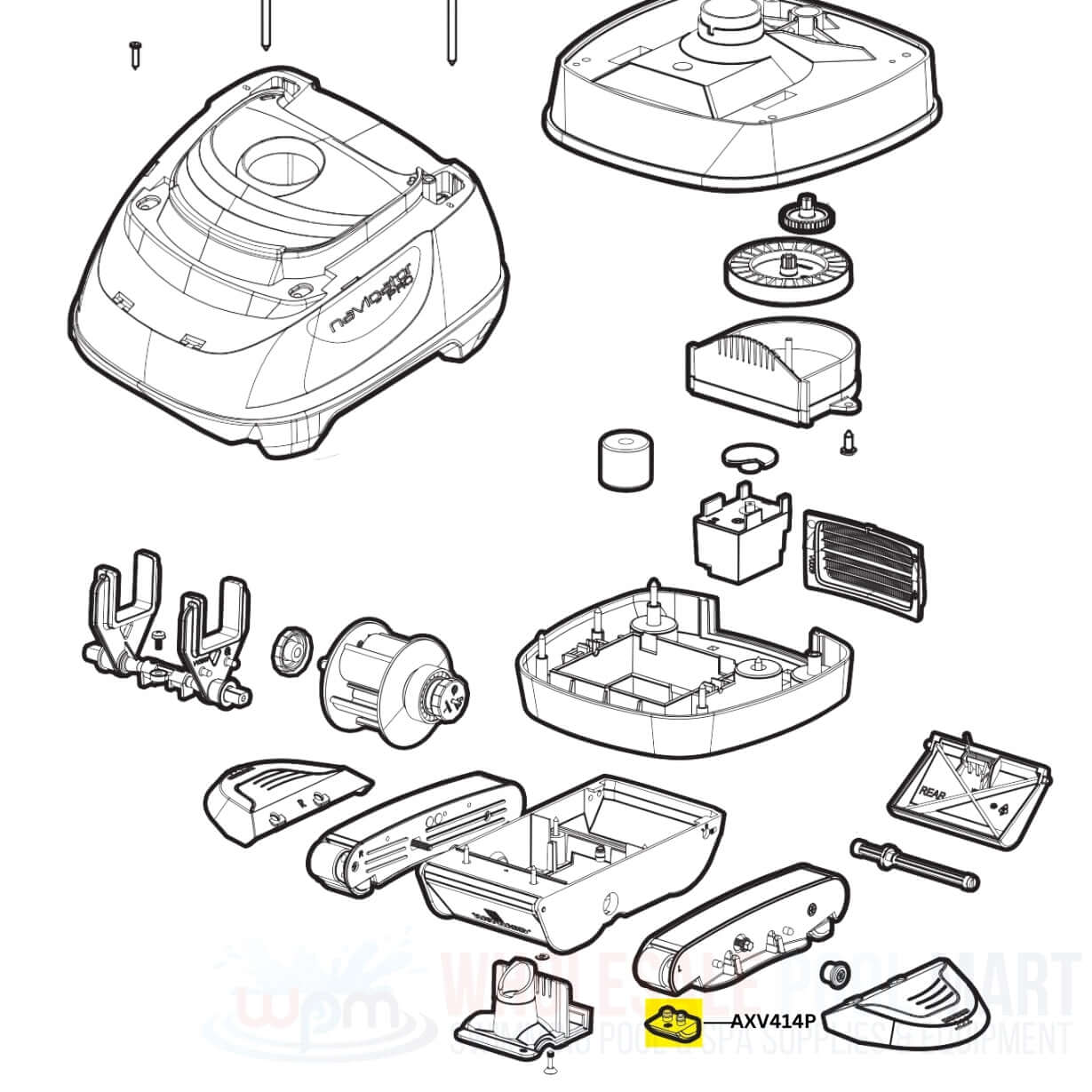

On the Hayward Navigator Pro Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Navigator Pro Cleaner

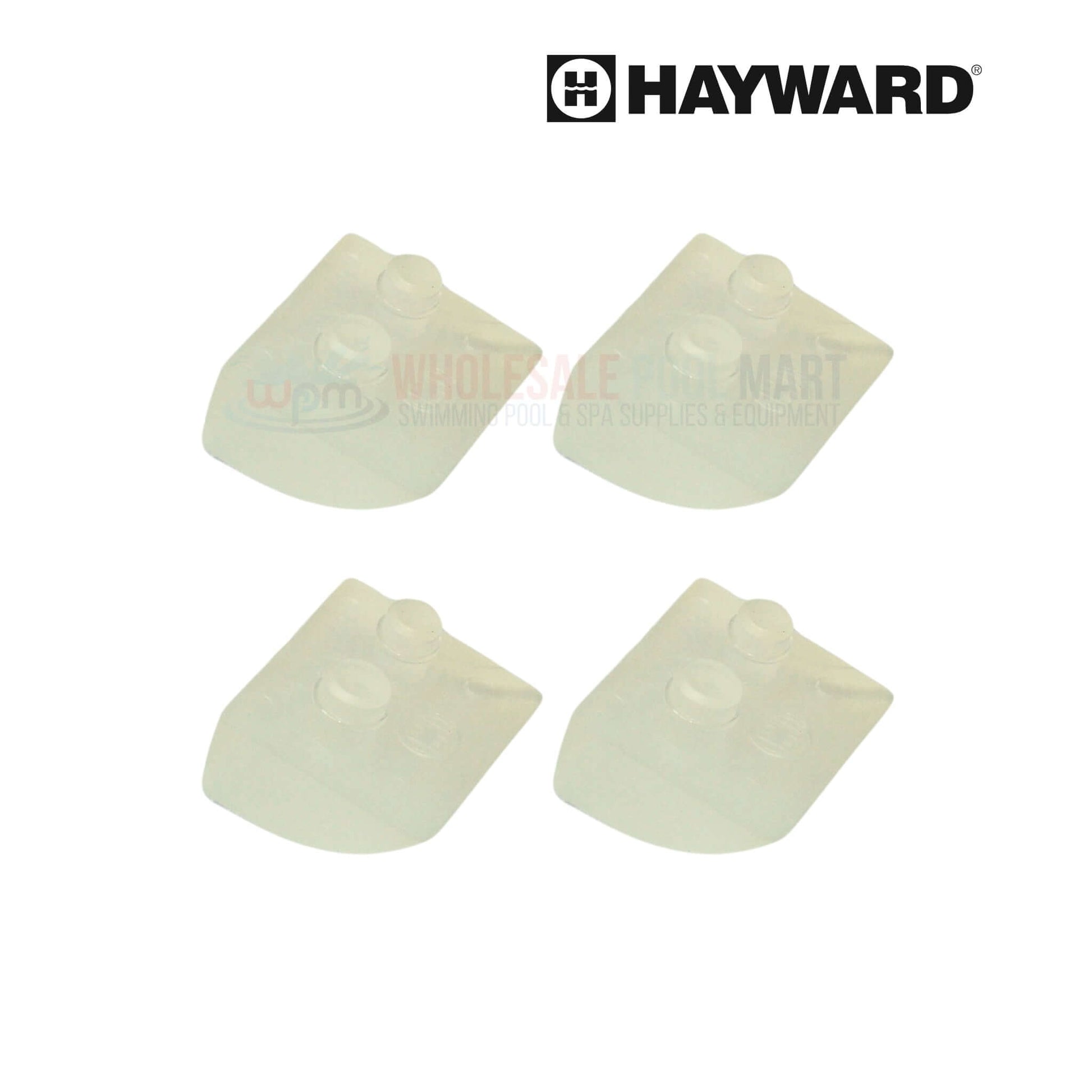

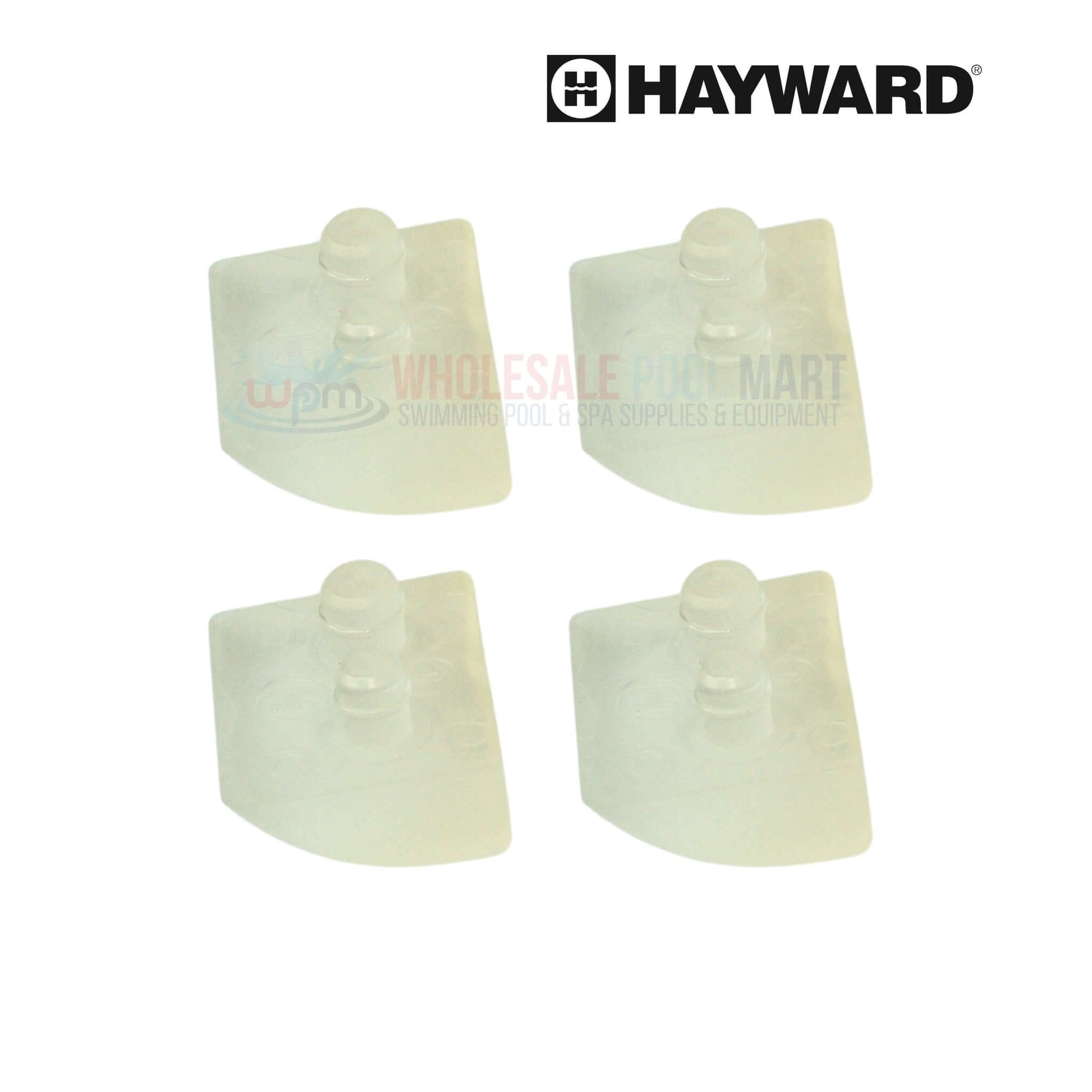

OEM Hayward AXV414P Pod Shoes are specially designed for Navigator and Pool Vac suction pool cleaners operating on concrete pool surfaces. This 4-pack of high-durability replacement shoes provides superior traction, enabling the cleaner to glide smoothly and collect debris efficiently. Each shoe is molded for secure fit and long wear life, ensuring continuous contact with the pool floor. The replacement process is quick and straightforward, helping you maintain optimal cleaner performance with minimal downtime. These shoes are essential for sustaining your cleaner’s effectiveness in concrete pool applications.
-
Engineered for Concrete Pool Surfaces: Tailored to provide high-traction contact for Hayward suction cleaners in concrete pools
-
Improves Cleaner Navigation and Pickup: Enhances grip and stability, helping the cleaner thoroughly remove dirt and debris
-
Constructed for Long-Term Reliability: Made from premium materials that stand up to rough pool finishes and daily use
-
Easy to Replace and Maintain: Straightforward removal and installation process with clear wear indicators for timely replacement
-
Includes Four Replacement Shoes: Complete set allows you to replace all pod shoes at once, keeping cleaner performance consistent
- (4) Hayward AXV414P Pod Shoes
- Note the wear line (highlighted) on the side of the shoe. Replace shoes if worn beyond this mark (Fig 24).
- Insert a flat head screwdriver between the pod foot and the shoe. Using a lifting motion, remove the shoe from the foot (Fig 25)
- When installing the new shoe, make sure all water and debris are removed from the surface and hole. The holes for the shoes and the posts on the shoes have matching sizes for proper positioning (fig 26).

- Hayward Navigator Pro Suction Pool Cleaners
- Hayward Navigator Suction Pool Cleaners
- Hayward Pool Vac Suction Pool Cleaners
Note: This pod shoes may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
