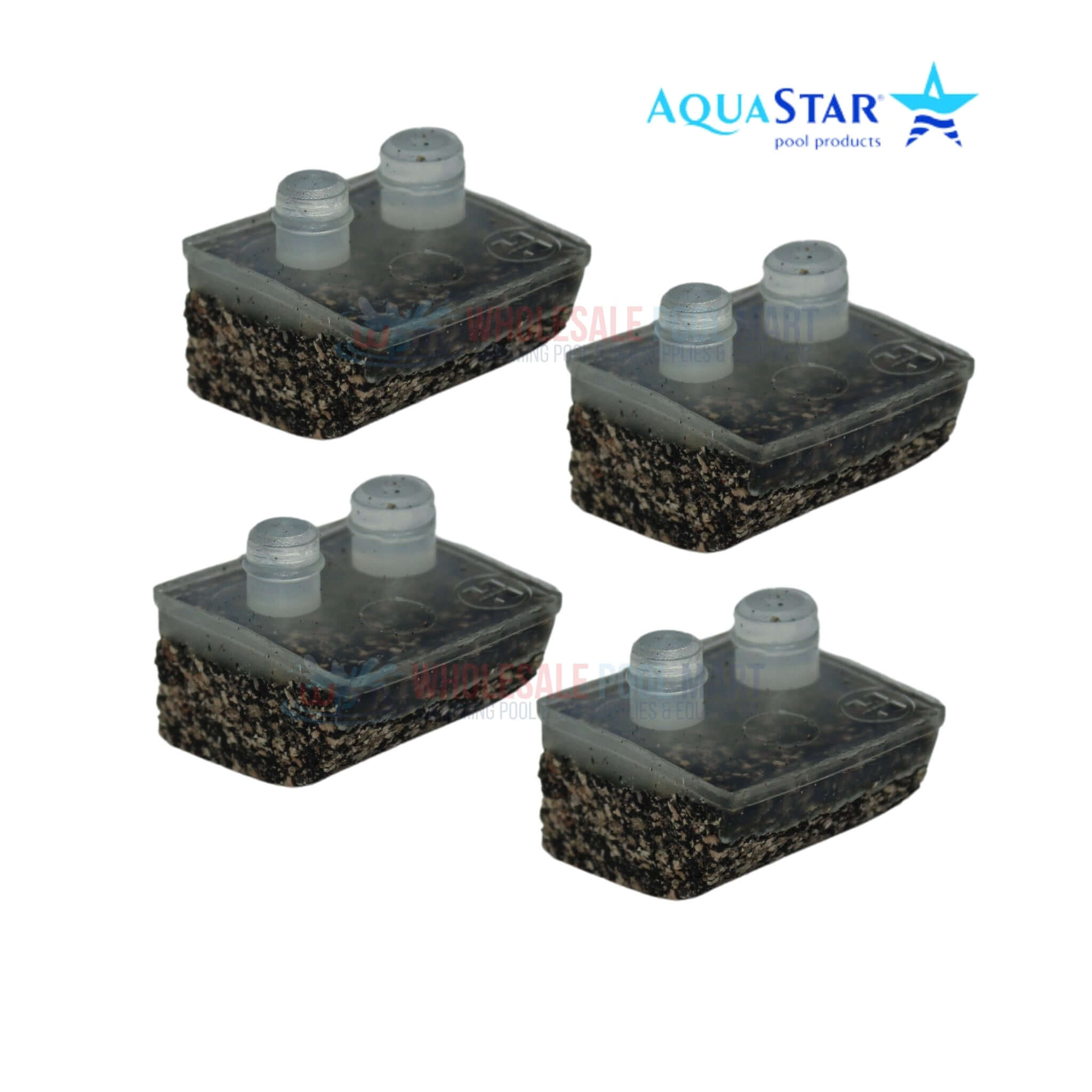

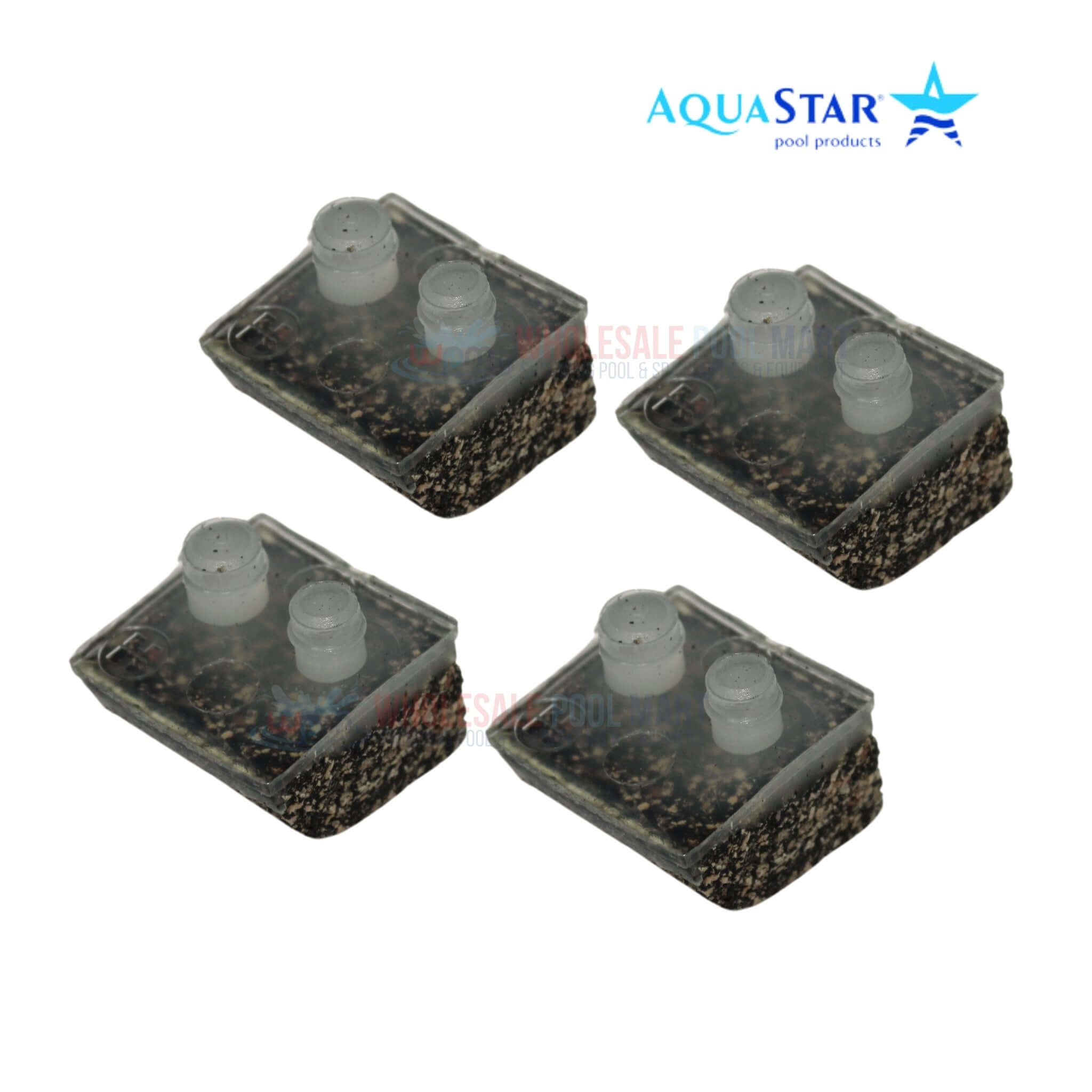

OEM Hayward Cork Pod Shoe Kit AXV014FNP is a genuine replacement set of four cork pod shoes crafted for Hayward automatic pool cleaners used on vinyl-lined pools. Designed for Pool Vac, Navigator, AquaBug, Diver Dave, and Wanda the Whale models, these shoes ensure gentle yet firm contact with the pool surface to enhance movement and suction. The cork provides excellent grip on smooth vinyl while helping prevent surface wear. Replacing worn shoes restores proper function and prolongs the life of your cleaner.
-
Safe for Vinyl Pool Surfaces: Constructed from soft cork to deliver traction without scuffing or damaging vinyl pool liners.
-
Fits Hayward Cleaner Models: Intended for several Hayward cleaner types including AquaBug, Pool Vac, Navigator, and themed models.
-
Enhances Pool Cleaner Performance: Maintains smooth operation and accurate navigation for thorough dirt and debris pickup.
-
Easy to Replace: Includes four user-friendly replacement shoes designed for quick installation with minimal tools or effort.
-
Protects Cleaner Functionality: Helps preserve cleaner alignment and mobility, contributing to consistent performance and reduced wear.
- (4) Hayward Cork Pod Shoes
- Hayward Pool Vac Cleaners
- Hayward Navigator Cleaners
- Hayward AquaBug Cleaners
- Hayward Diver Dave Cleaners
- Hayward Wanda the Whale Cleaners
1. Check the condition of the “shoes, wings and flaps” periodically. The shoes and wings have wear indicators on their sides and should be checked occasionally to determine if they need replacing. The shoe wear indicator is a line on the side of the shoe that appears as a difference in texture. When this texture difference is no longer visible at the
bottom of the shoe when viewed from either side, the shoes must be changed. Also on the side, the wing wear indicator is a horizontal line which has three (3) vertical lines above it. When you can no longer see the horizontal line, the wings must be changed. The Hayward Tune-Up Kit is available from your dealer.
Shoes, wings and flaps may also be purchased separately.
2. SHOE REPLACEMENT:
a) Turn unit upside down.
b) Insert screwdriver between foot and shoe on one of the pads (see Figure 8).
c) Using a lifting motion, remove the shoe from the foot.
d) Dip a new shoe in water and attach the shoe to the foot, making sure to put the small
post into the small hole and the large post into the large hole. These posts and holes
are different sizes to prevent the shoes from being improperly installed.
e) Repeat Steps b,c, and d for each shoe.
