Hayward FDXLICB1930 Integrated Control Board | For H-Series

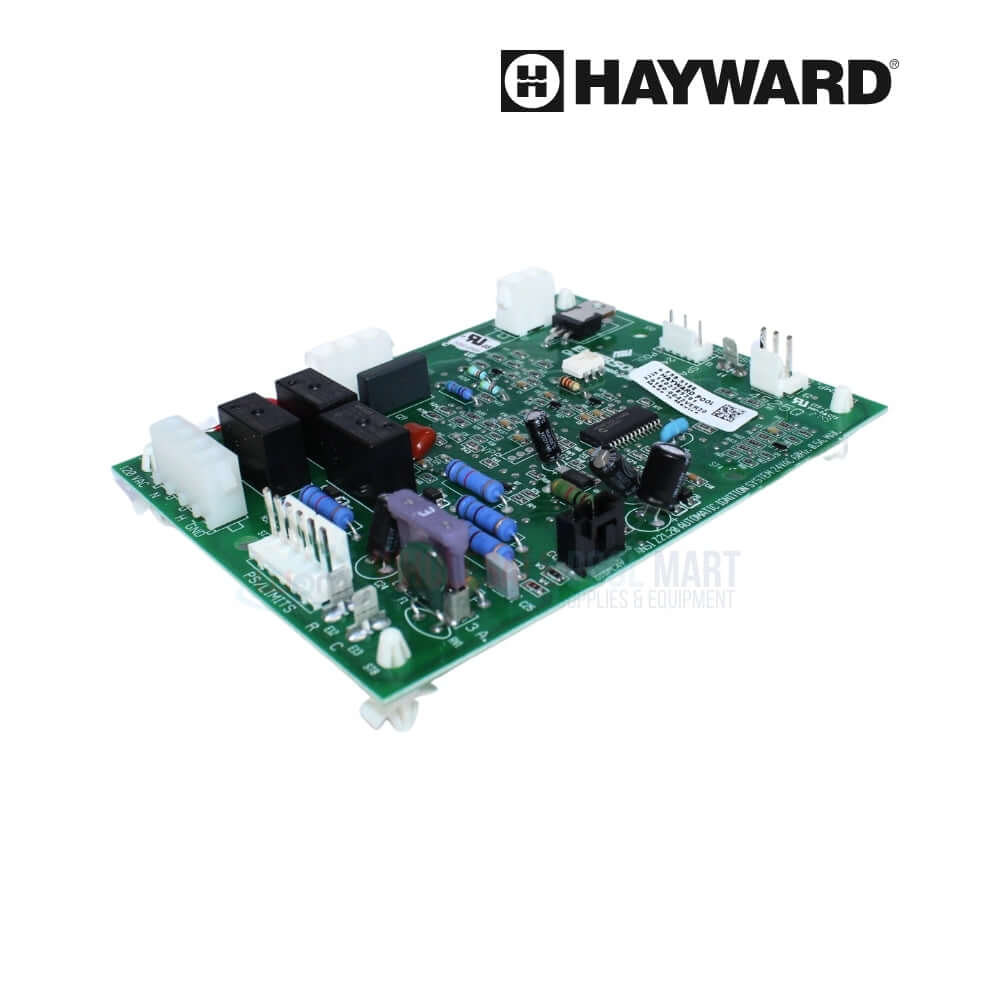

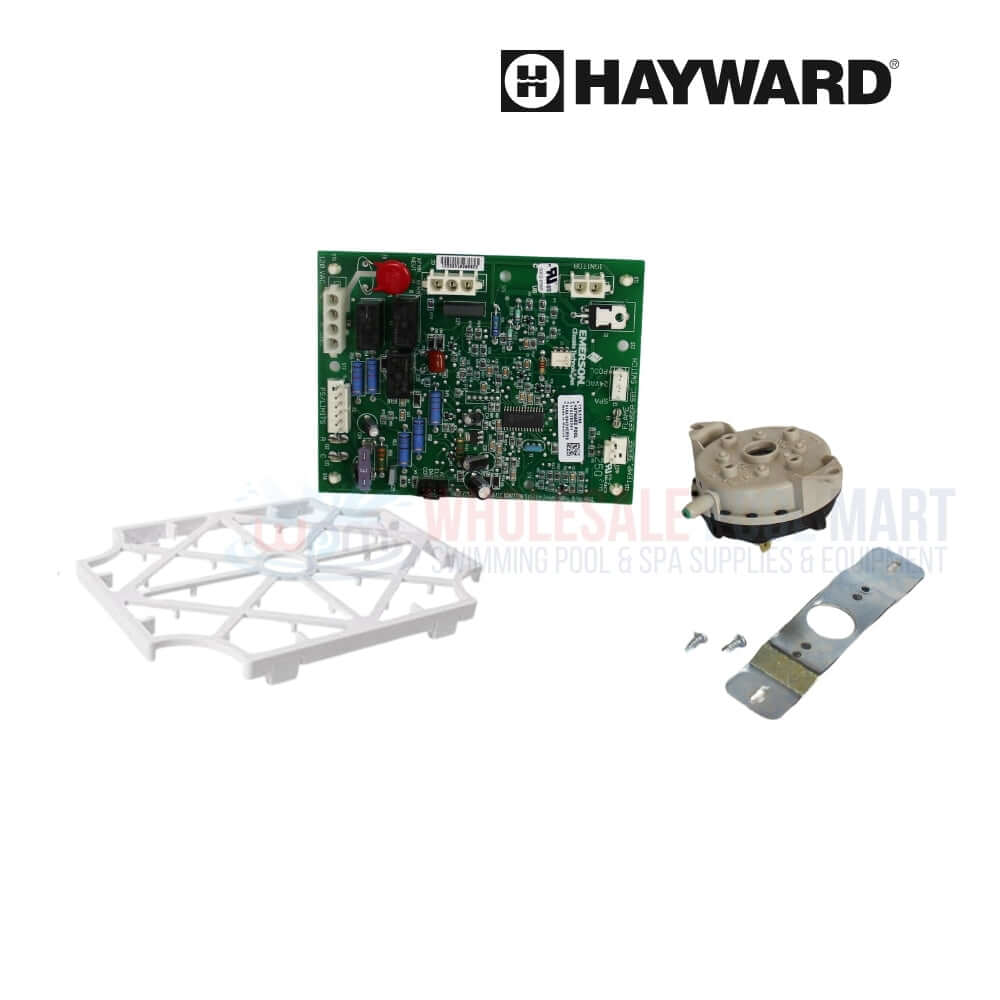

OEM Hayward FDXLICB1930 Integrated Control Board Kit is a critical replacement part for H-Series Low NOx pool heaters, supporting reliable operation in units made after September 20, 2004. This board controls the core electrical functions of the heater, including safety systems and ignition, ensuring smooth performance and consistent heat delivery. Manufactured to Hayward’s strict standards, the FDXLICB1930 is essential for resolving system faults and maintaining peak energy efficiency. Designed for easy installation, it plays a key role in reducing service interruptions and preserving heater life span.

Highlights

• Direct OEM Replacement Part: Genuine Hayward control board designed to support high-performance Low NOx pool and spa heaters

• Fits Post-2004 H-Series Units: Compatible with a wide range of models manufactured after September 20, 2004, ensuring accurate system match

• Controls Core System Functions: Governs ignition, diagnostics, and operational safety features to maintain dependable heater cycles

• Fast, Hassle-Free Setup: Built with plug-and-play functionality to simplify field replacement during service or repairs

• Improves Heater Longevity and Performance: Maintains manufacturer-rated energy efficiency and system responsiveness over time

Compatibility

• Hayward H-Series Heaters Models: H150FDN, H150FDP, H200FDN, H200FDP, H250FDN, H250FDP, H300FDN, H300FDP, H350FDN, H350FDP, H400FDN, H400FDP, H500FD

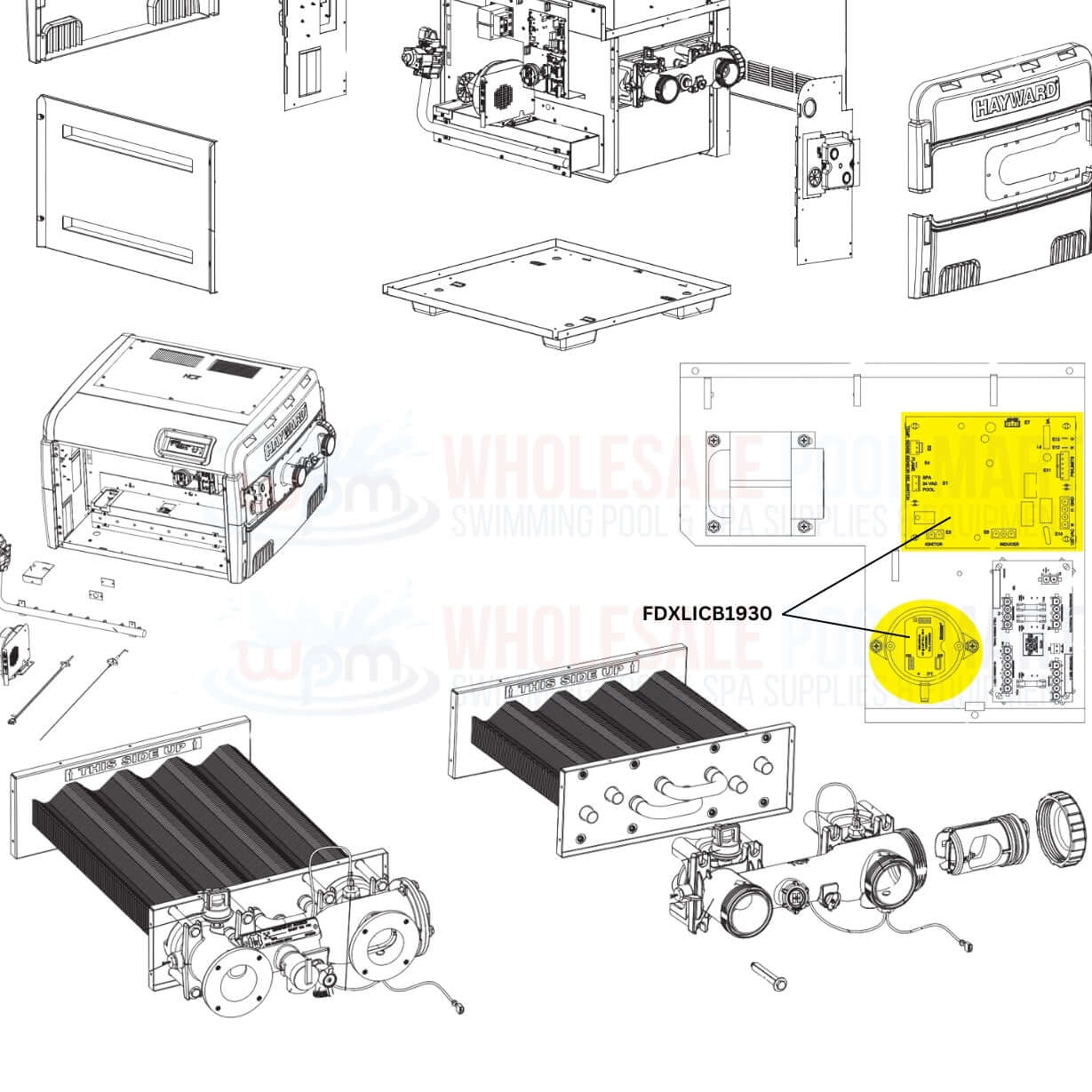

Diagram
