OEM Hayward Hi-Limits Kit IDXHLK1930 is a replacement safety kit for Hayward H-Series Induced Draft Above Ground heaters, featuring two high-limit switches designed to stop heater operation if temperatures exceed safe levels. This protects internal components and users from potential overheating damage. Made from durable OEM-grade materials, the kit installs easily and helps ensure the heater runs within safe thermal limits. It’s a critical component for restoring safety functions and maintaining heater reliability.
-
Fits H-Series Above Ground Units: Designed specifically for Hayward Induced Draft heater models to provide an exact match and effective safety response
-
Dual High-Limit Switch Protection: Comes with two integrated switches that cut off power if water temperature rises above safe thresholds
-
Overheating Prevention System: Ensures the heater operates within proper limits to avoid internal damage or safety risks
-
Authentic Hayward Replacement Kit: OEM design ensures complete compatibility and long-lasting protection under standard use conditions
-
Fast and Easy Installation: Quick to install with minimal tools, restoring safety control in the event of high-limit switch failure

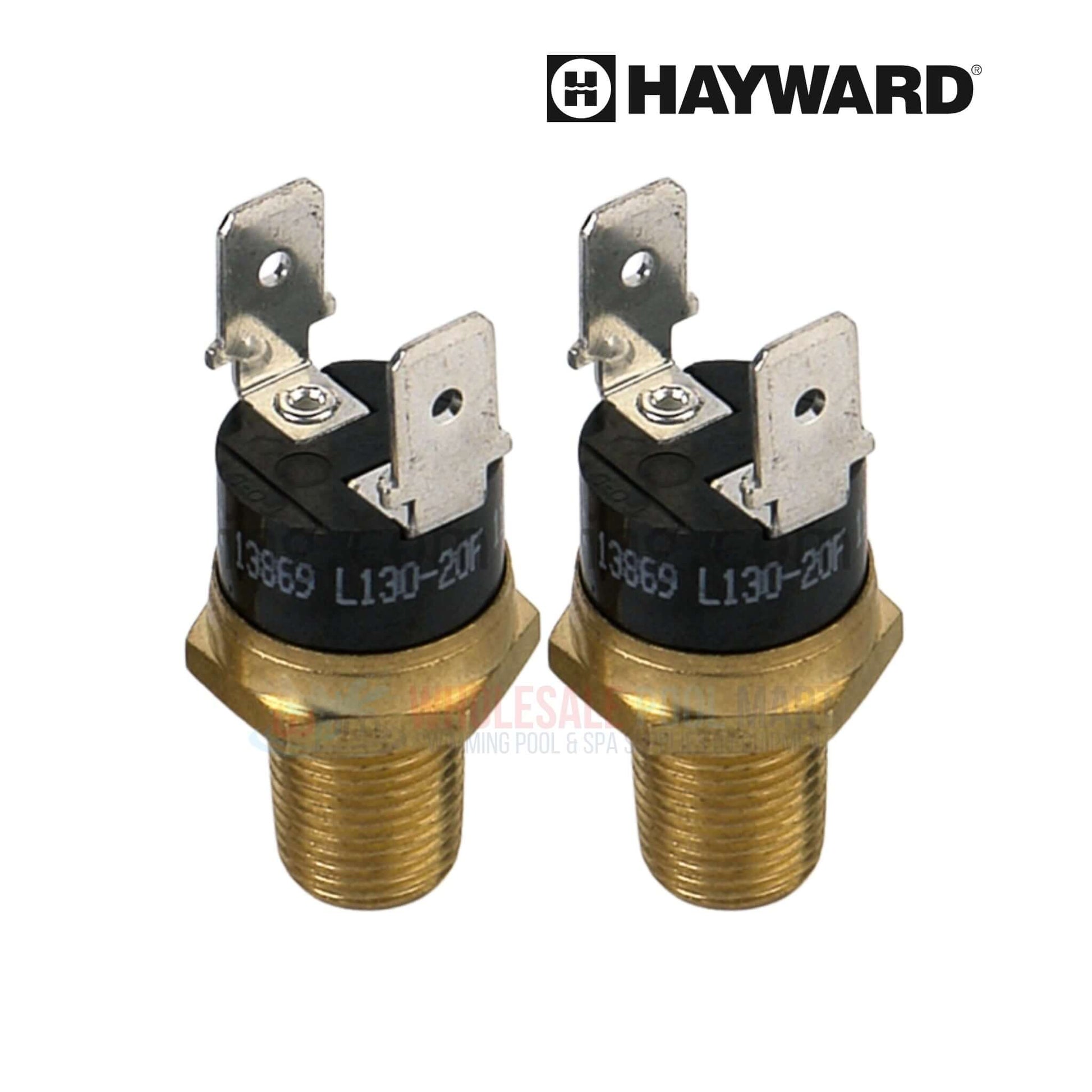

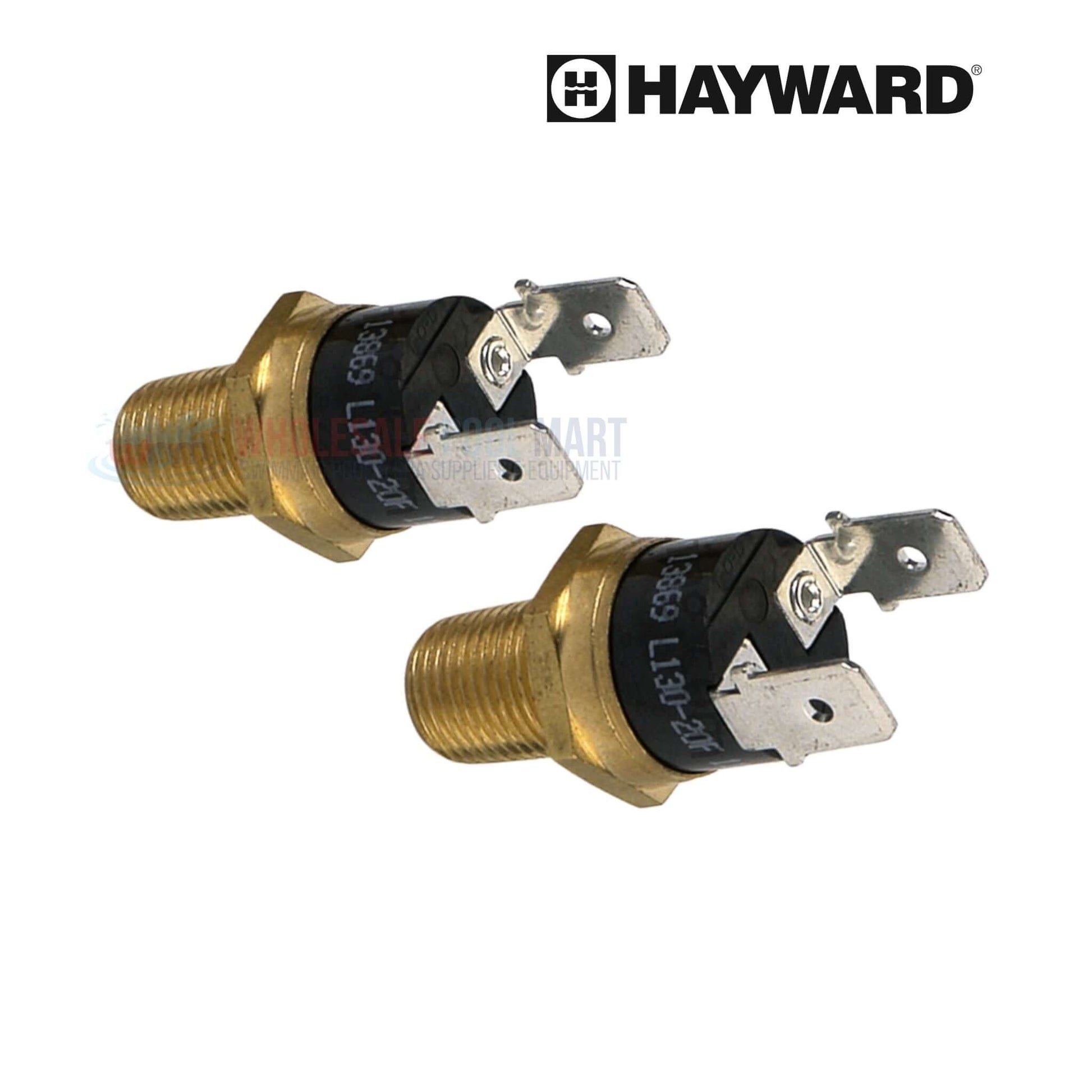

- (2) Hayward IDXHLK1930 Hi-Limits Switch
- Hayward H-Series Heaters
- Hayward H-Series Induced Draft Heaters
