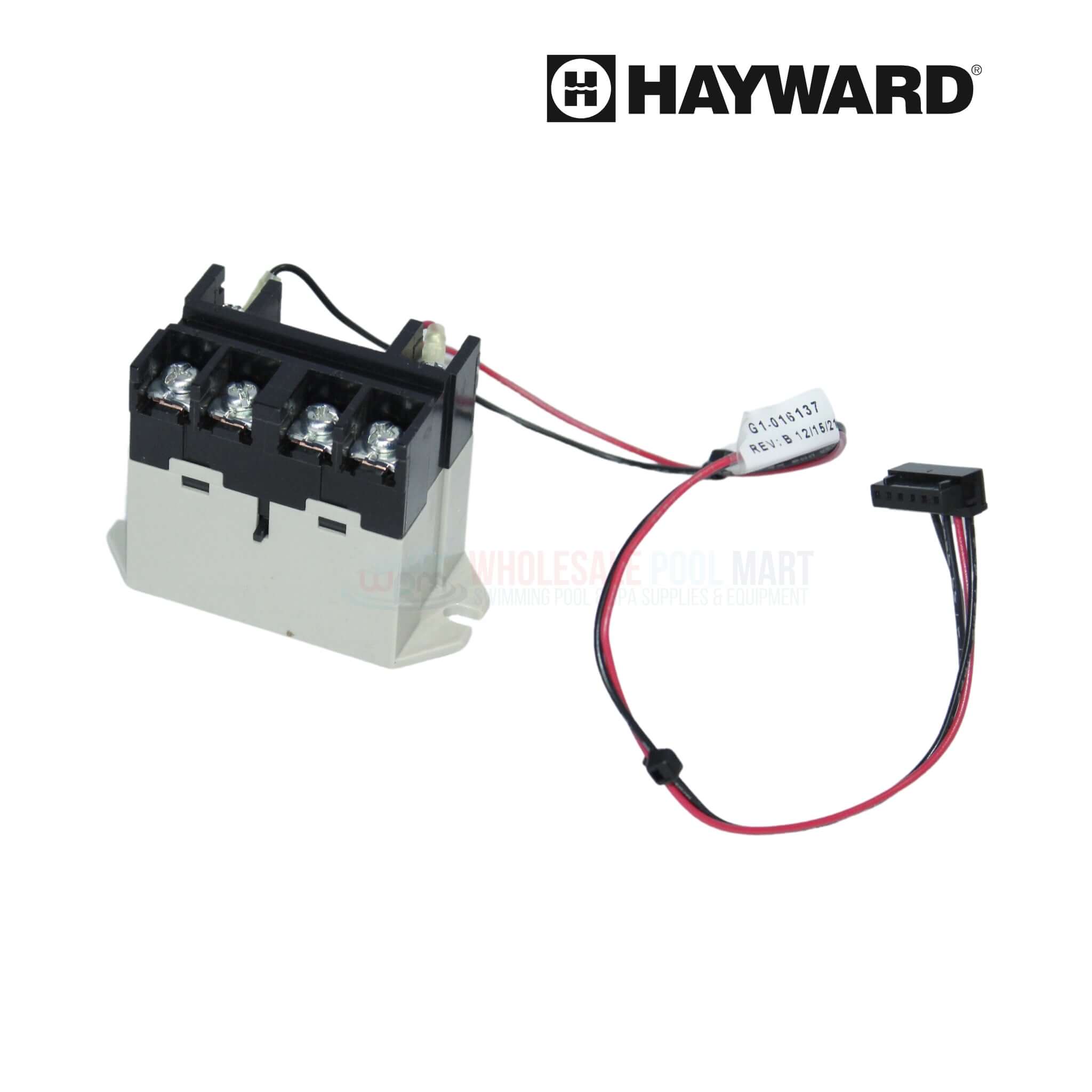

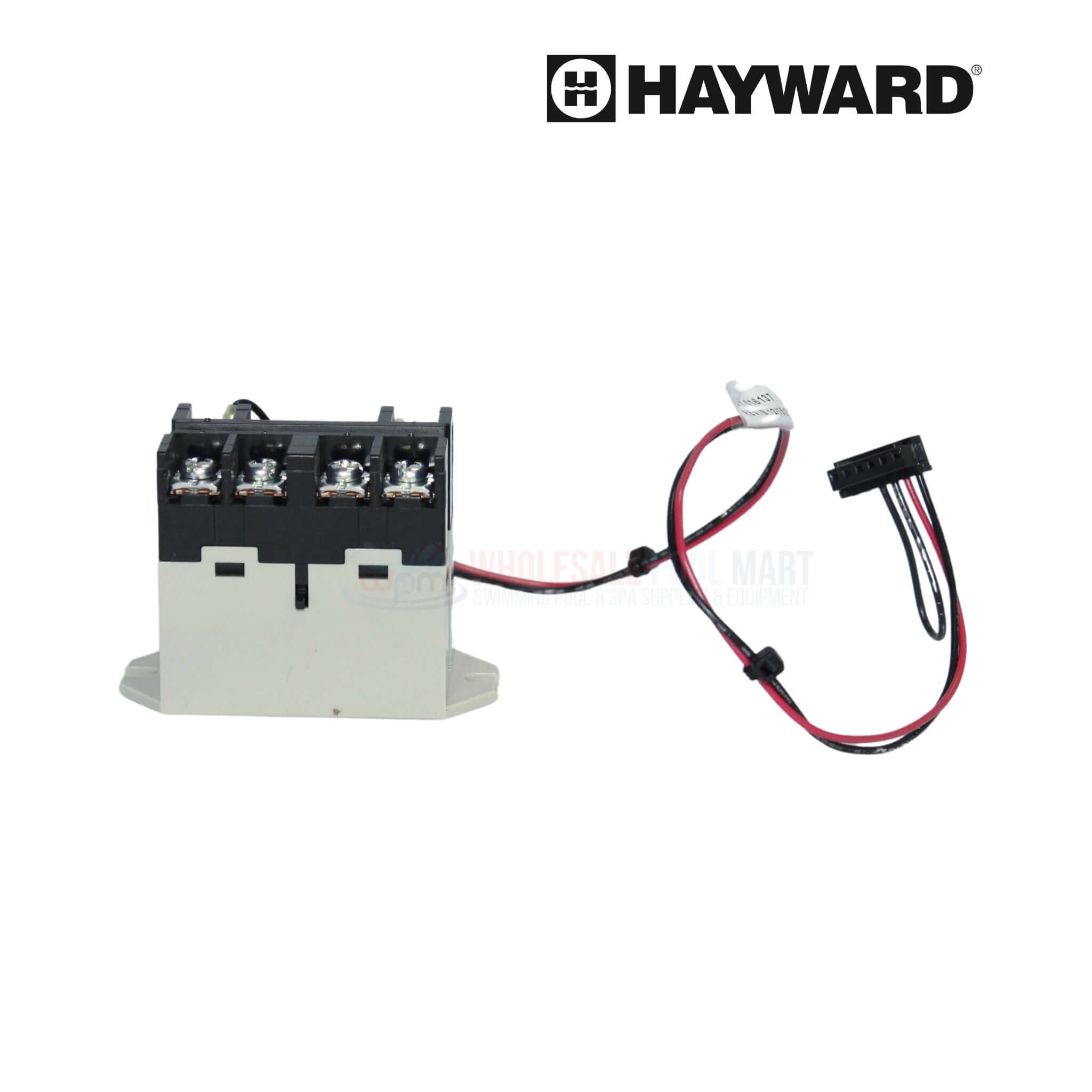

OEM Hayward HLRELAY is an authentic expansion relay module for Hayward OmniLogic automation systems, designed to extend system control to additional high-power pool and spa equipment. By adding one HLRELAY, users can integrate devices such as pumps, lighting, or heaters directly into the automation interface. The OmniLogic controller allows up to two HLRELAY modules per system, making it ideal for growing equipment needs. Installation is quick—mount the relay inside the control panel, connect it to the main board, and the OmniLogic will recognize and configure the module automatically.
-
Authentic OmniLogic Expansion Module: Extends the control range of your Hayward system for added convenience and flexibility
-
Versatile Equipment Integration: Enables operation of more pool and spa equipment, including high-voltage pumps and heating systems
-
Scalable System Design: Supports up to two HLRELAY modules per base unit for expanded automation possibilities
-
Quick Installation and Auto Recognition: Mounts easily in-panel and connects directly to the board, with no manual programming required
-
Ideal for System Growth: Allows your pool automation to adapt as your setup evolves, offering greater long-term control
- Hayward OmniLogic Automation Systems
