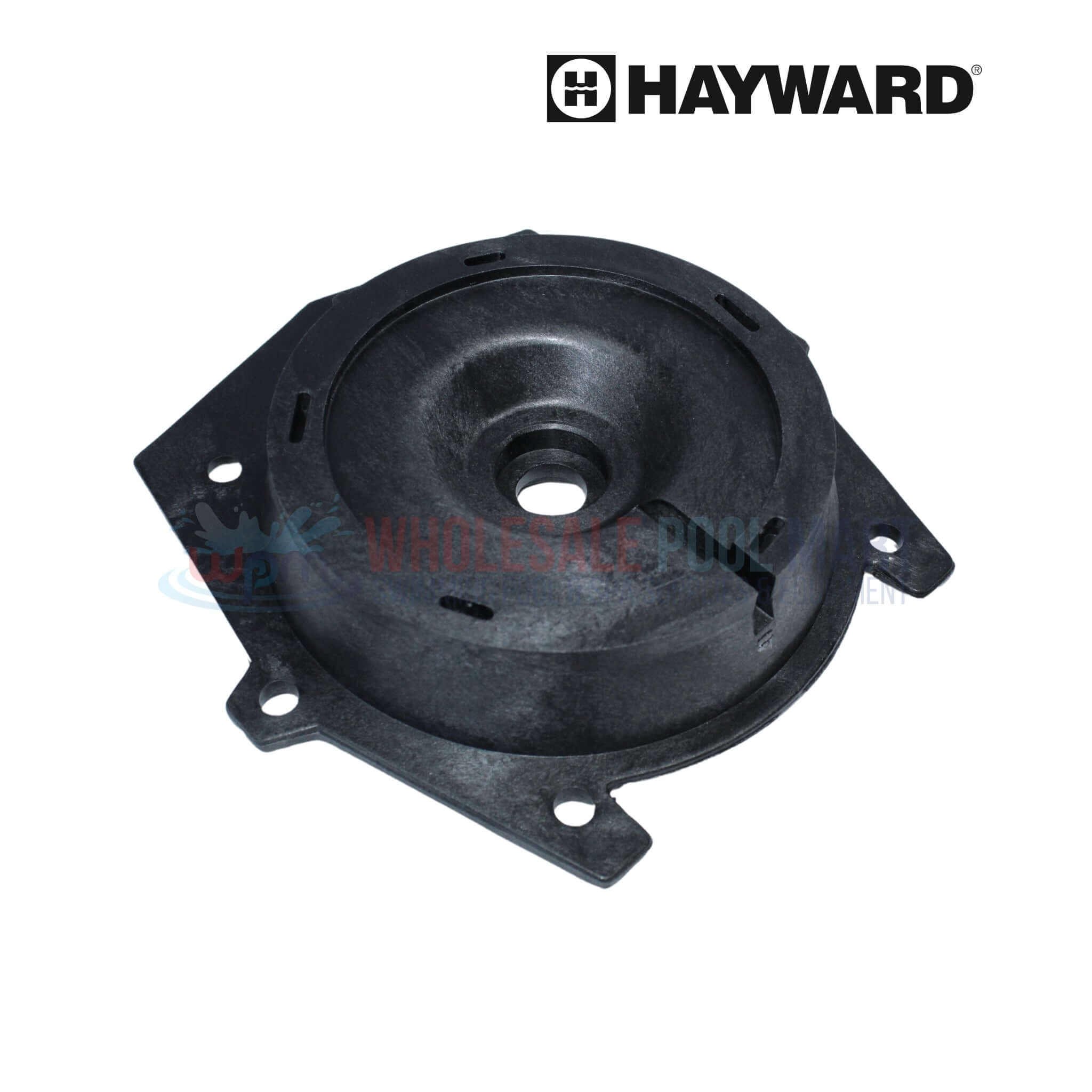

Hayward SPX3020E Seal Plate | For Super II Pumps
Fits these models (2)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 3 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
OEM Hayward SPX3020E Seal Plate is essential for maintaining proper pump operation in Super II models by providing a sealed connection that prevents water leakage. This precision-molded plate is installed between the motor assembly and volute, helping to preserve pressure and maintain effective water flow. Built from durable materials to withstand harsh conditions, it plays a vital role in protecting the pump from damage. Replacing a degraded seal plate like the SPX3020E helps maintain pump efficiency, prevent performance issues, and support continuous operation of your pool’s filtration system.
-
Critical Sealing Function: Forms a tight barrier to prevent water escape from the pump housing, supporting overall system pressure
-
Long-Wearing Build Quality: Made from rugged components that stand up to heat, pressure, and pool chemicals
-
Safeguards Pump Components: Minimizes risk of internal wear by keeping moisture out of the motor housing
-
Ensures Consistent Water Flow: Aids in stable pump output by preserving the sealed environment required for efficient operation
-
Recommended Maintenance Item: Regularly replacing the seal plate is essential to preventing leaks and maintaining pump functionality
- Hayward Super II Pump SP3000 Series Models: SP3007(EEAZ), SP3010(EEAZ), SP3015(EEAZ), SP3020(EEAZ), SP3025(EEAZ), SP3030(EEAZ)
- Hayward Super II Pump SP3000X Series Models: SP3005X7(AZ), SP3007X10(AZ), SP3010X15(AZ), SP3015X20(AZ), SP3020X25(AZ), SP3025X30(AZ)
