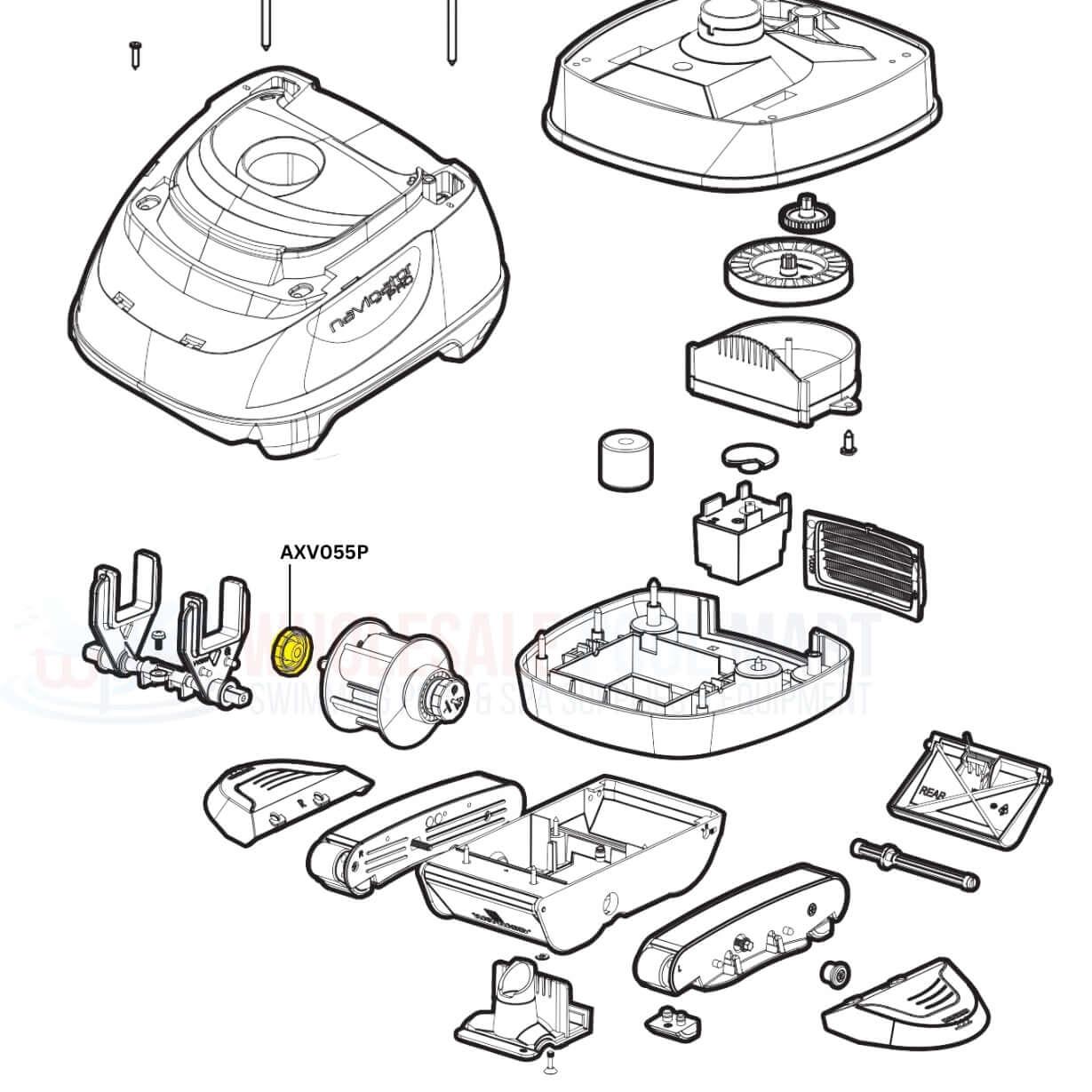

On the Hayward Navigator Pro Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Navigator Pro Cleaner

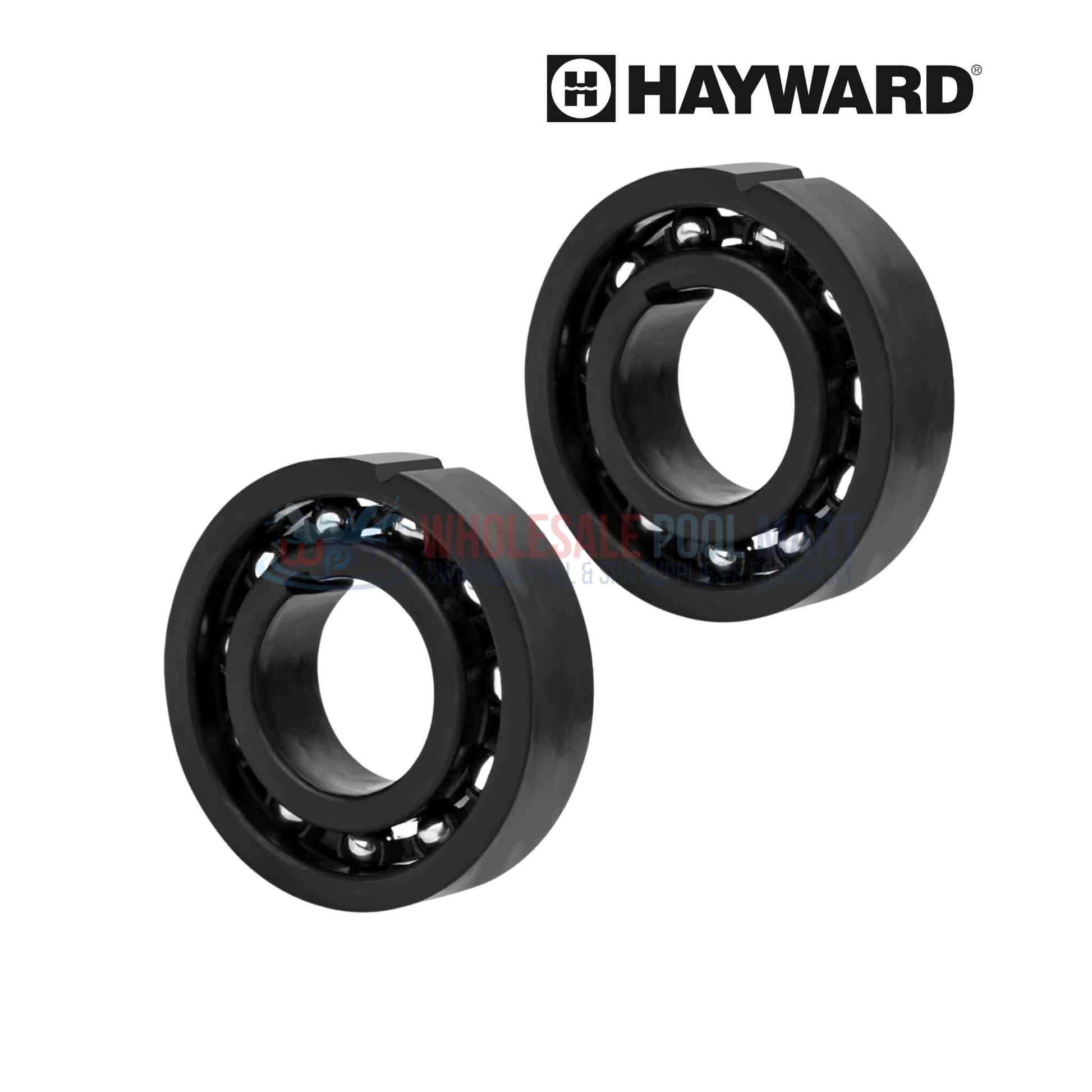

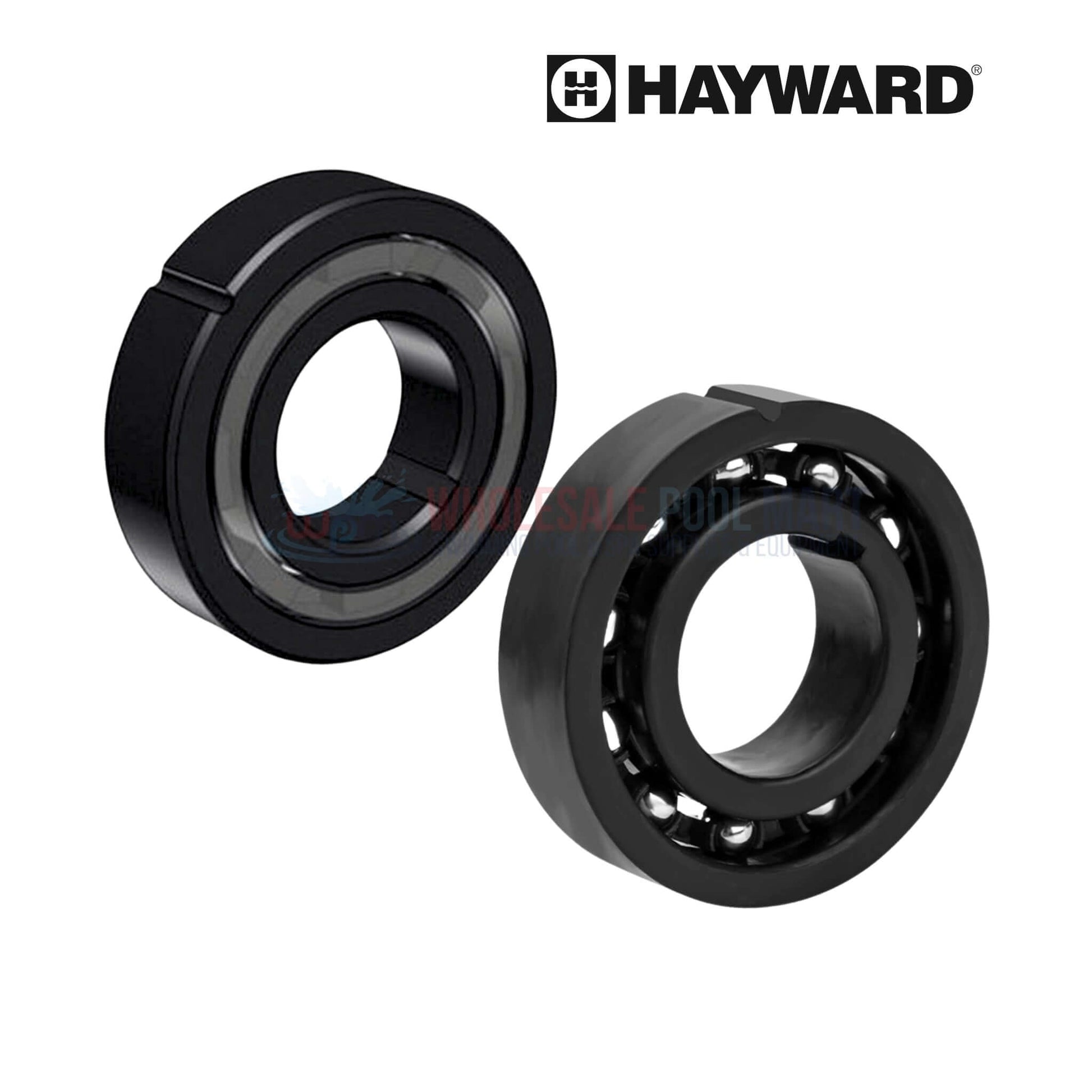

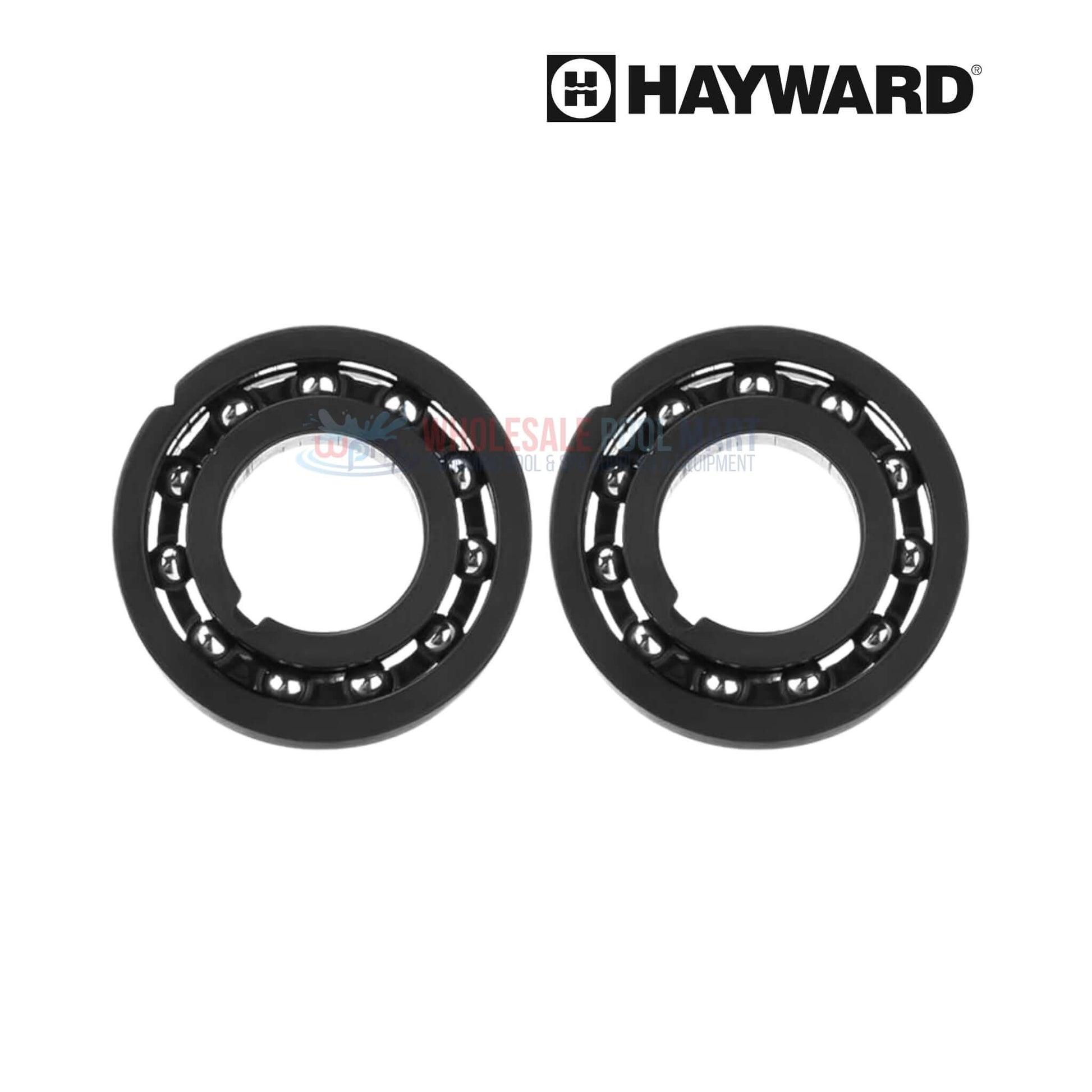

OEM Hayward AXV055P Turbine Bearings are essential components for maintaining the internal motion and efficiency of Navigator and Pool Vac suction pool cleaners. This 2-pack set minimizes wear and friction within the turbine assembly, helping the cleaner glide smoothly across the pool surface. Built from resilient materials and engineered for long-term durability, these bearings install easily and play a crucial role in keeping your cleaner operating at its full potential.
-
Engineered for Turbine Performance: Keeps turbine spinning freely by reducing internal resistance and mechanical drag
-
Compatible with Popular Models: Fits Hayward Navigator, Navigator Pro, and Pool Vac suction pool cleaners without modification
-
Long-Lasting Bearing Set: Made from tough materials to withstand water exposure, high-speed rotation, and extended use
-
Restores Cleaning Efficiency: Ensures even movement and suction power for reliable debris collection during cleaning cycles
-
Straightforward Replacement Process: Drop-in installation allows for quick repairs with minimal downtime
- (2) Hayward AXV055P Turbine Bearings
- Hayward Navigator Pro Suction Pool Cleaners
- Hayward Navigator Suction Pool Cleaners
- Hayward Pool Vac Suction Pool Cleaners
Note: This turbine bearing may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
