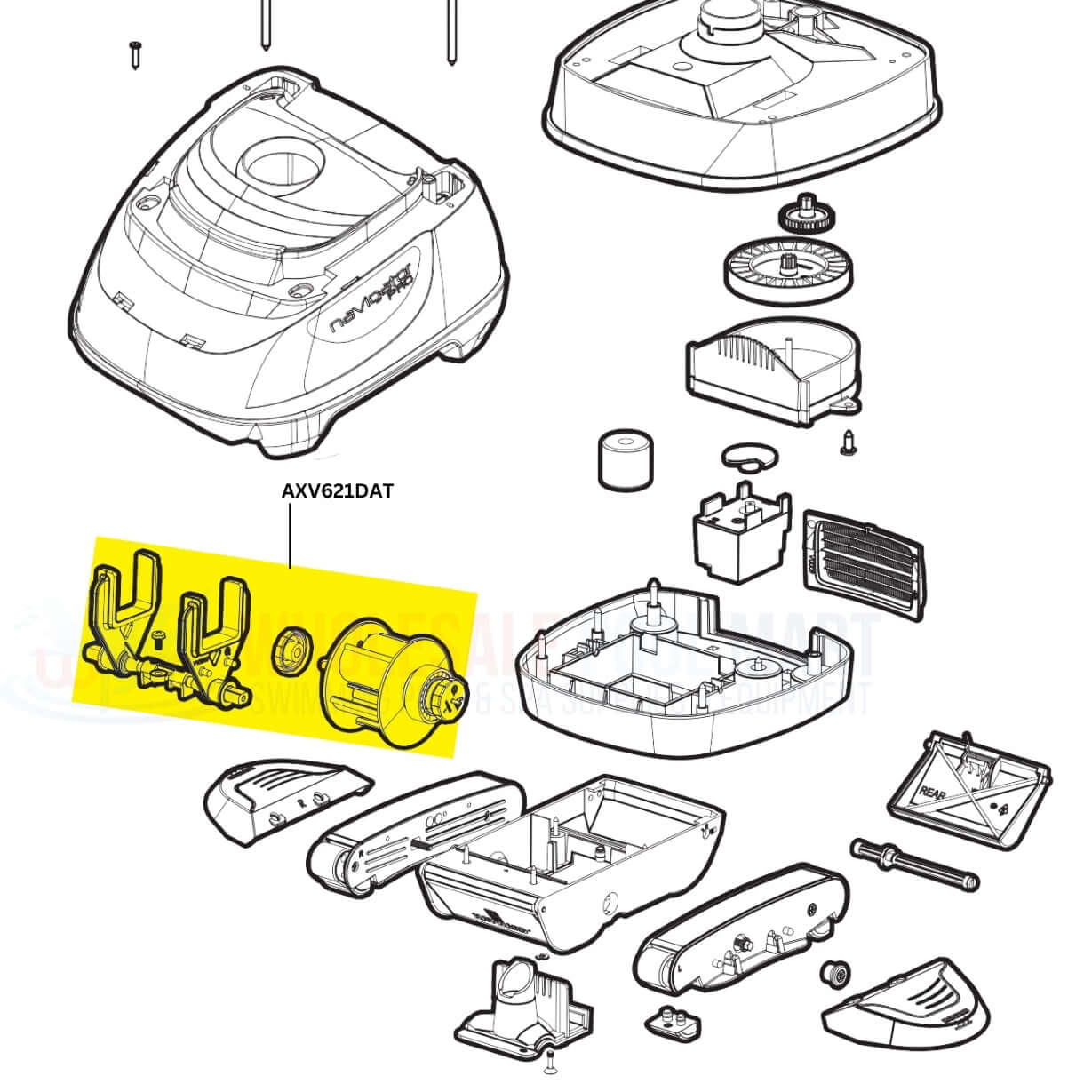

On the Hayward Navigator Pro Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Navigator Pro Cleaner
OEM Hayward AXV621DAT Universal A-Frame & Turbine Kit is a complete internal replacement set for Hayward suction-side cleaners including Navigator, PoolVac, AquaBug, AquaDroid, Diver Dave, and Wanda the Whale. Featuring two A-frames with bushings, a saddle, keeper, turbine with dual bearings, and mounting hardware, this kit addresses all key moving components. It restores the gear drive and turbine rotation systems to ensure reliable suction, smooth navigation, and consistent debris pickup. Each part is constructed for long-term use in chemically treated pool environments.
-
Genuine Hayward Compatibility: Fits multiple Hayward cleaners including Navigator, Wanda the Whale, and Diver Dave for OEM-level restoration.
-
Comprehensive Kit Contents: Includes turbine with bearings, soft roller A-frames, saddle, keeper, screws, and washers for a full gear rebuild.
-
Improves Internal Motion: Restores alignment and movement in the cleaner’s drivetrain, ensuring consistent suction power and navigation.
-
Built for Pool Conditions: Components are made from chemical- and wear-resistant materials for long-lasting performance.
-
Maximizes Cleaner Efficiency: Replacing worn internal parts enhances overall performance and maintains optimal cleaning results.
- Hayward Pool Vac
- Hayward Navigator
- Hayward Aquadroid
- Hayward AquaBug
- Hayward Diver Dave
- Hayward Wanda Whale
Note: This A-Frame/Turbine Kit may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
- (2) Soft Roller A-frames with Bushings
- (1) Saddle
- (1) Keeper
- (1) Main Turbine
- (2) Bearing
- Hex Head Pod Screws
- Pod Screw Washers
