Hayward Wall Mount Transformer 300W | LTBUY11300

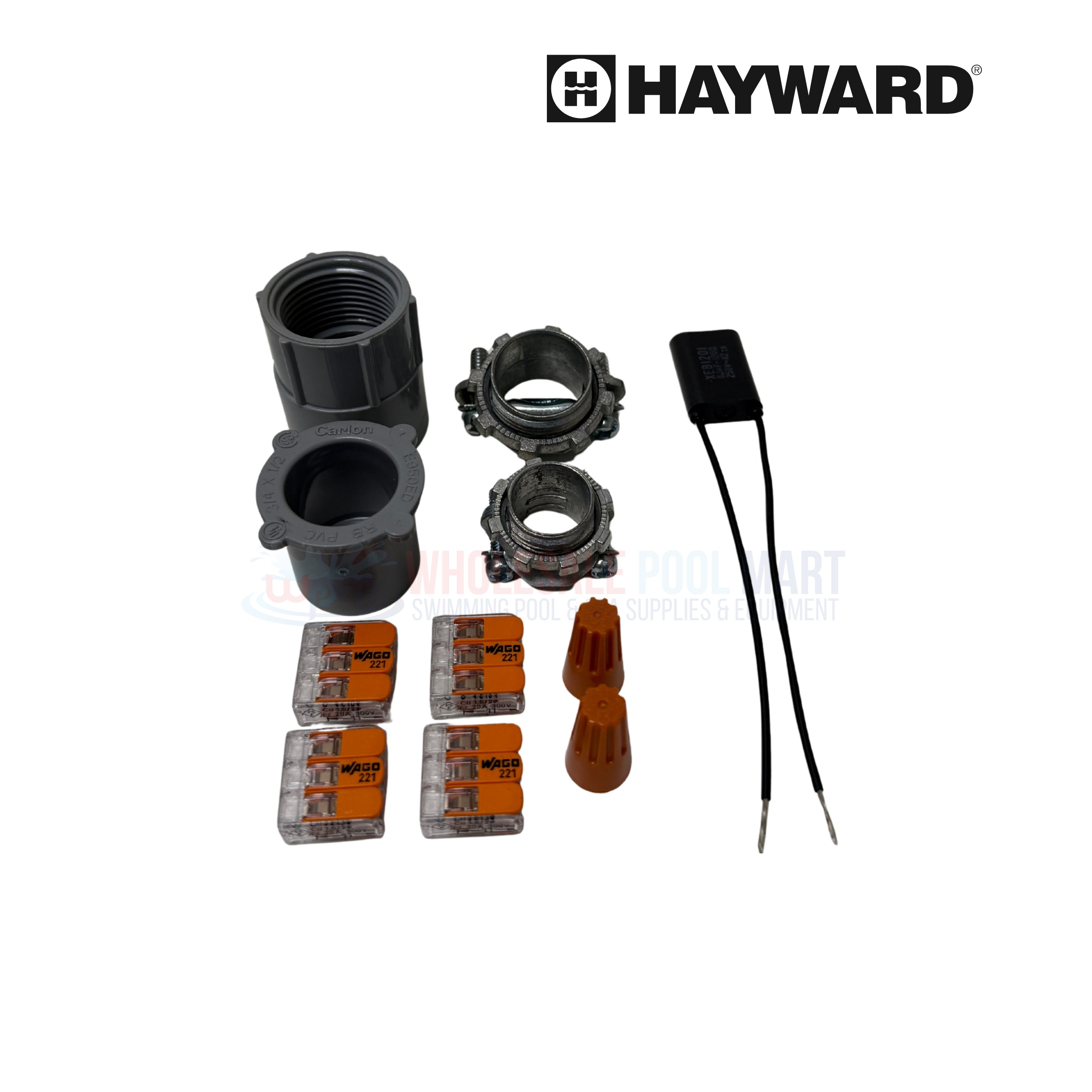

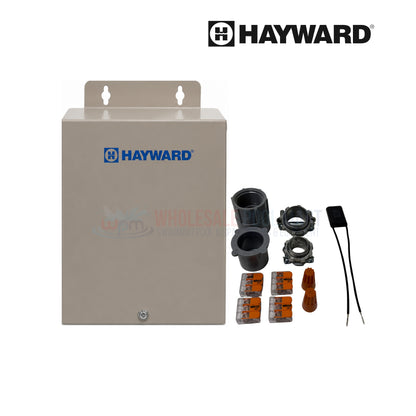

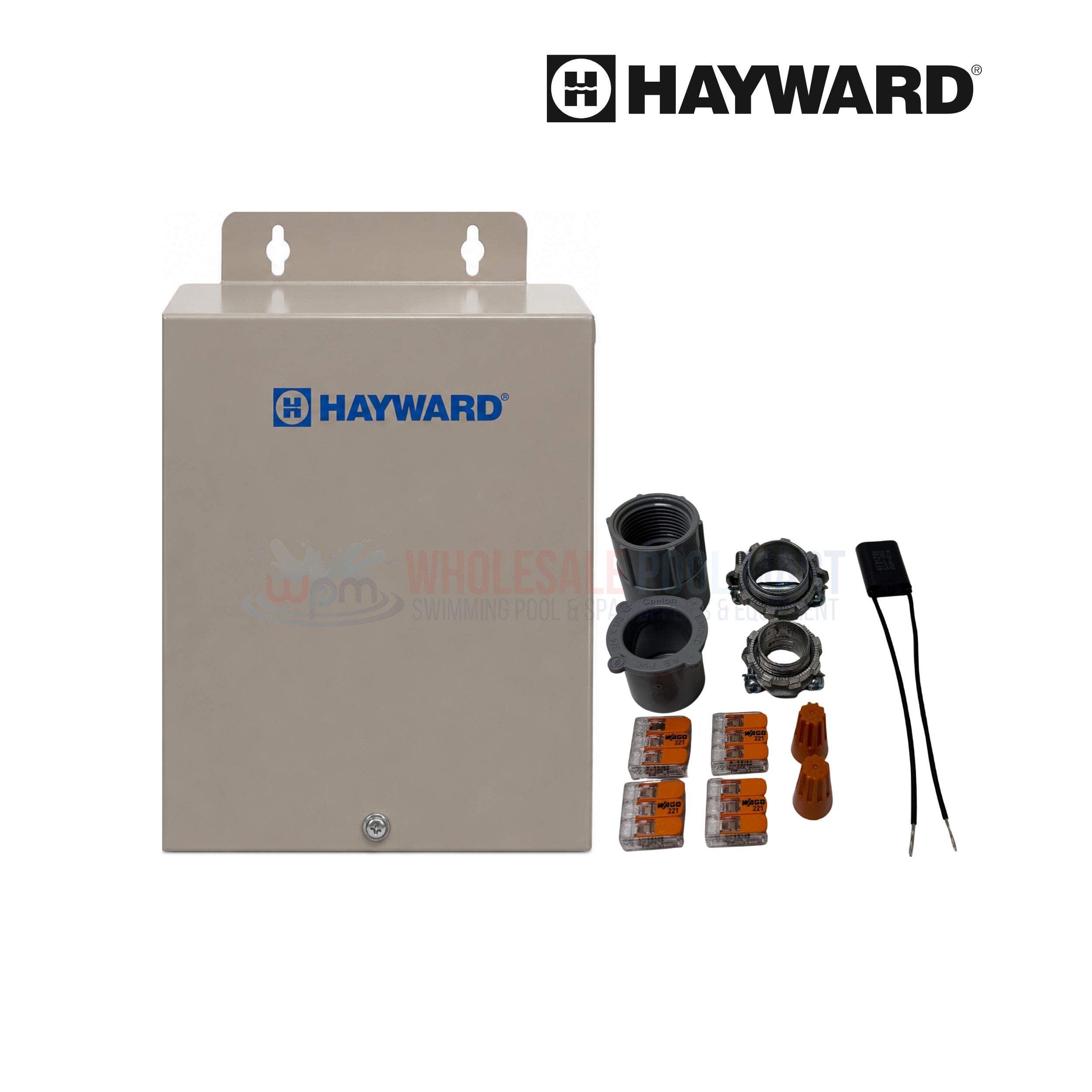

The Hayward LTBUY11300 is an OEM 300-watt wall-mount low-voltage transformer designed for new pool and spa construction lighting installations as well as 120V to low-voltage system conversions. Compatible with Hayward's Universal CrystaLogic and ColorLogic LED lighting systems, the LTBUY11300 steps down 120V input power to three selectable output voltages — 12V, 13V, or 14V — allowing installers to fine-tune output based on light type, cable run length, and brightness requirements. The compact corrosion-resistant steel enclosure measures 7-1/4 inches high by 5-1/4 inches wide by 4-1/2 inches deep and includes top and bottom mounting brackets along with ten combination knockouts for flexible conduit entry. An included Snubber Capacitor arc suppressor and built-in split-bobbin circuit protection automatically disconnect power in the event of a defect or overload, supporting safe, reliable operation in pool and spa environments. The LTBUY11300 pairs seamlessly with Hayward junction boxes for multi-light new construction installations and ships with a direct connection kit for pool and spa lights. The transformer is UL listed.

Highlights

• Three Selectable Output Voltages: Offers 12V, 13V, and 14V low-voltage output options to accommodate varying pool and spa light types, cable run lengths, and brightness requirements, allowing installers to tune output for consistent, optimized light performance across compatible Hayward Universal CrystaLogic and ColorLogic LED configurations.
• 300-Watt Capacity for Multi-Light Builds: With a 300-watt maximum output rating, the LTBUY11300 supplies ample power for multi-light new construction installations and pairs seamlessly with Hayward junction boxes, allowing several Universal CrystaLogic and ColorLogic LED fixtures to be driven from a single transformer.
• Split-Bobbin Protection and Snubber Capacitor: A patented split-bobbin design separates the primary and secondary windings for safer operation, while the included Snubber Capacitor arc suppressor automatically disconnects power if an overload or internal defect occurs, helping protect both the transformer and the connected lighting fixtures downstream.

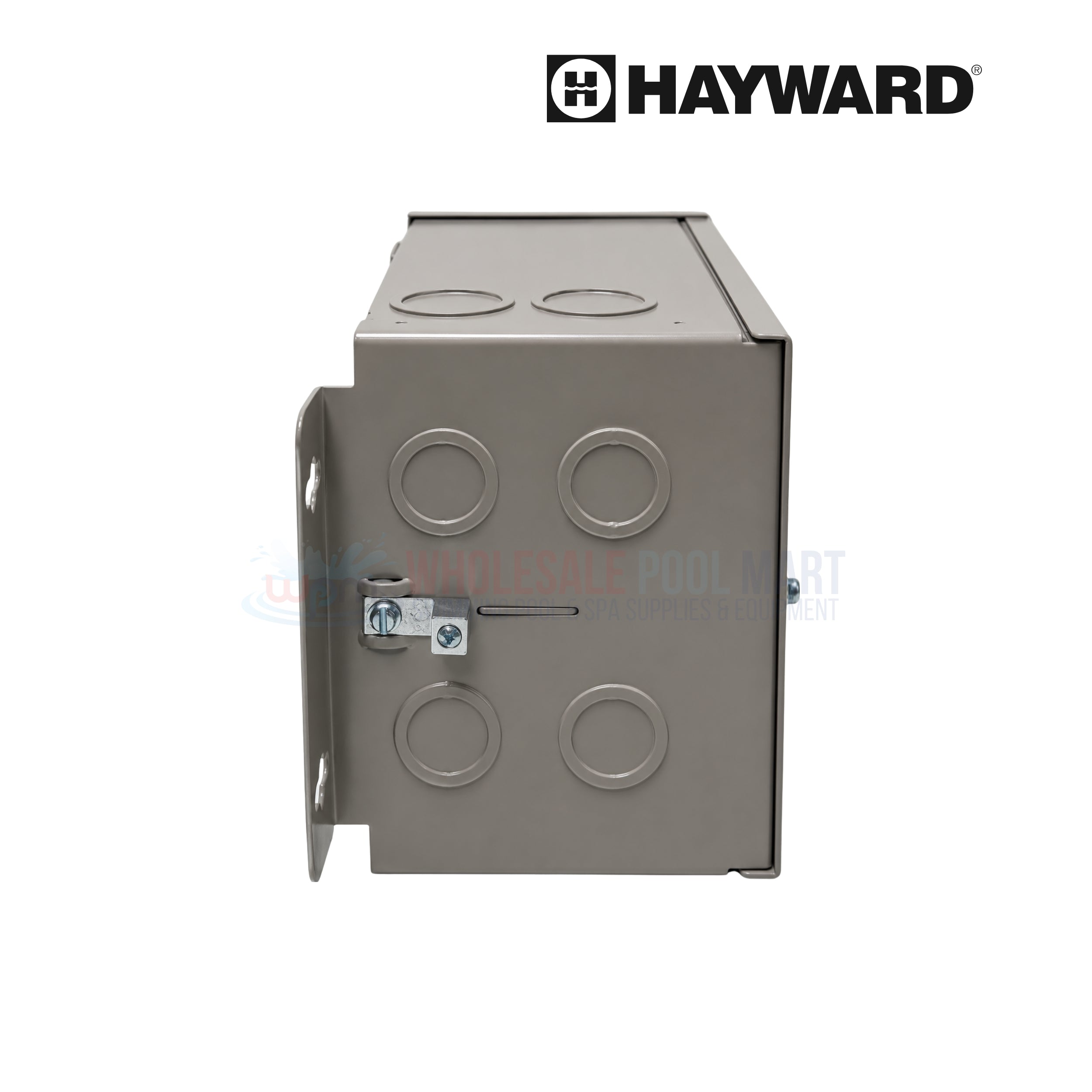

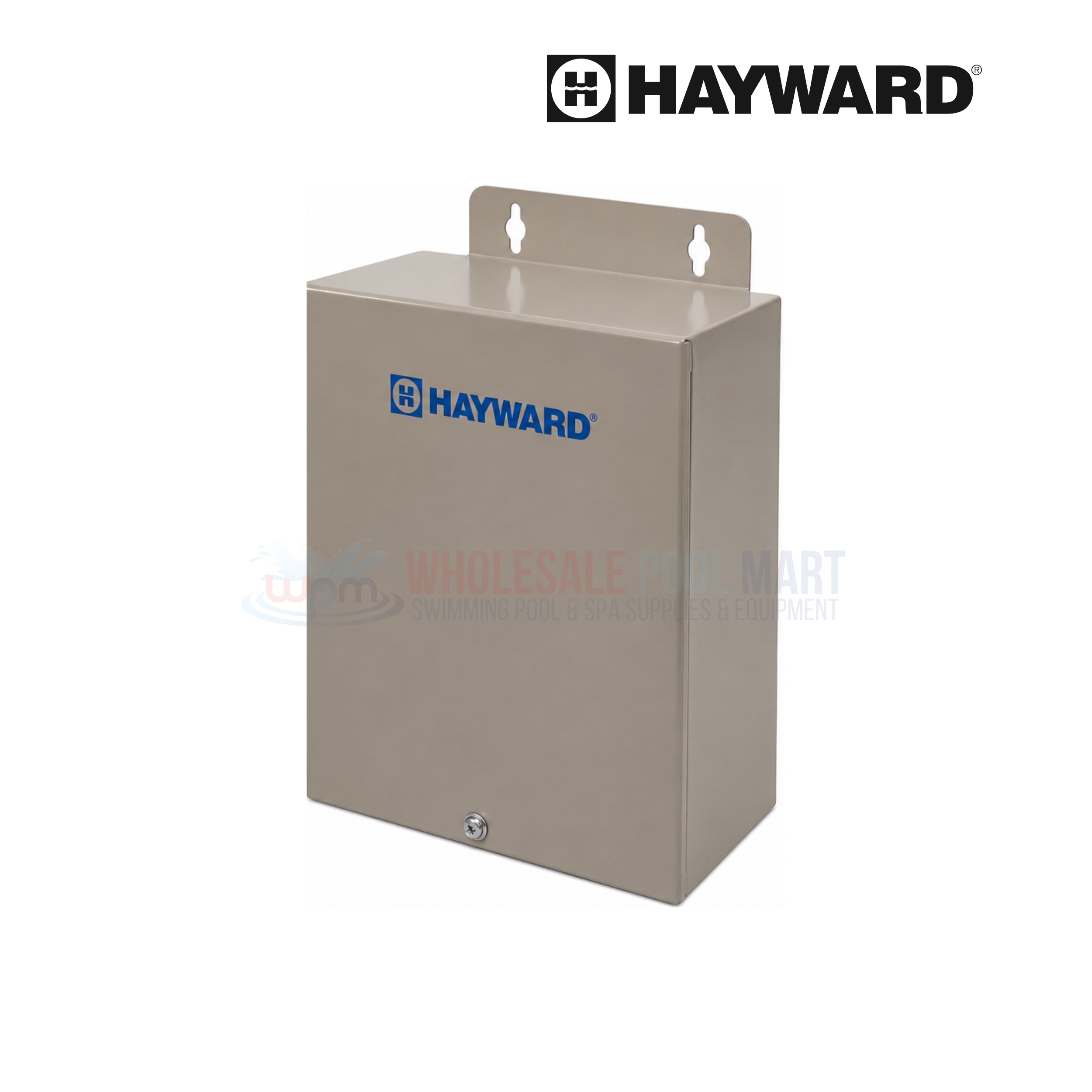

• Corrosion-Resistant Enclosure with Flexible Conduit Entry: The compact 7-1/4 by 5-1/4 by 4-1/2 inch steel enclosure carries an electrostatically applied white coating for corrosion resistance, includes top and bottom mounting brackets, and provides ten 1/2 inch and 3/4 inch combination knockouts for flexible conduit routing during installation.

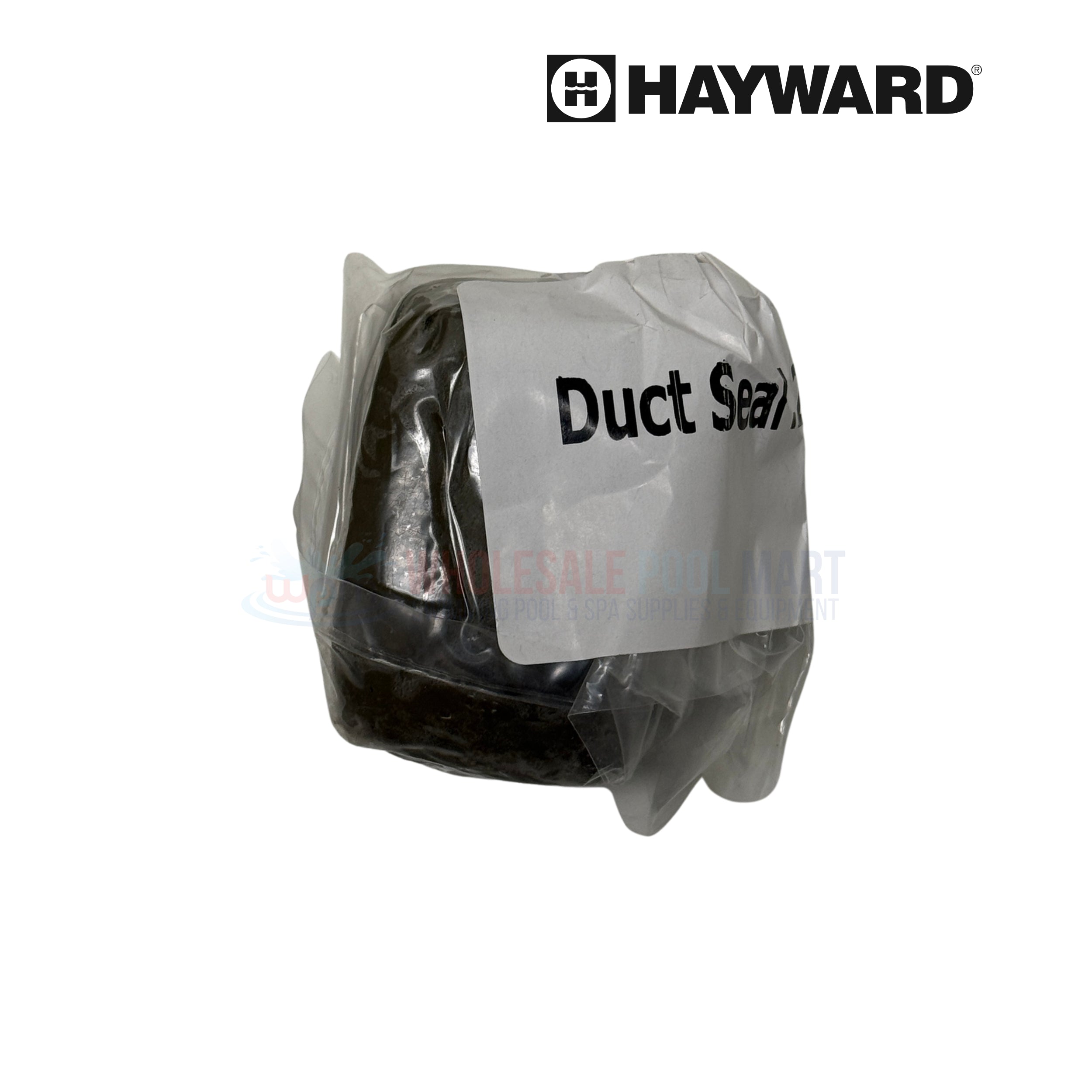

• UL Listed for Pool and Spa Lighting: Fully UL listed and engineered for direct connection to underwater pool and spa lights when paired with the included adapter, clamp, and duct seal, meeting the stringent safety standards required for low-voltage aquatic lighting installations across residential and commercial pools.
