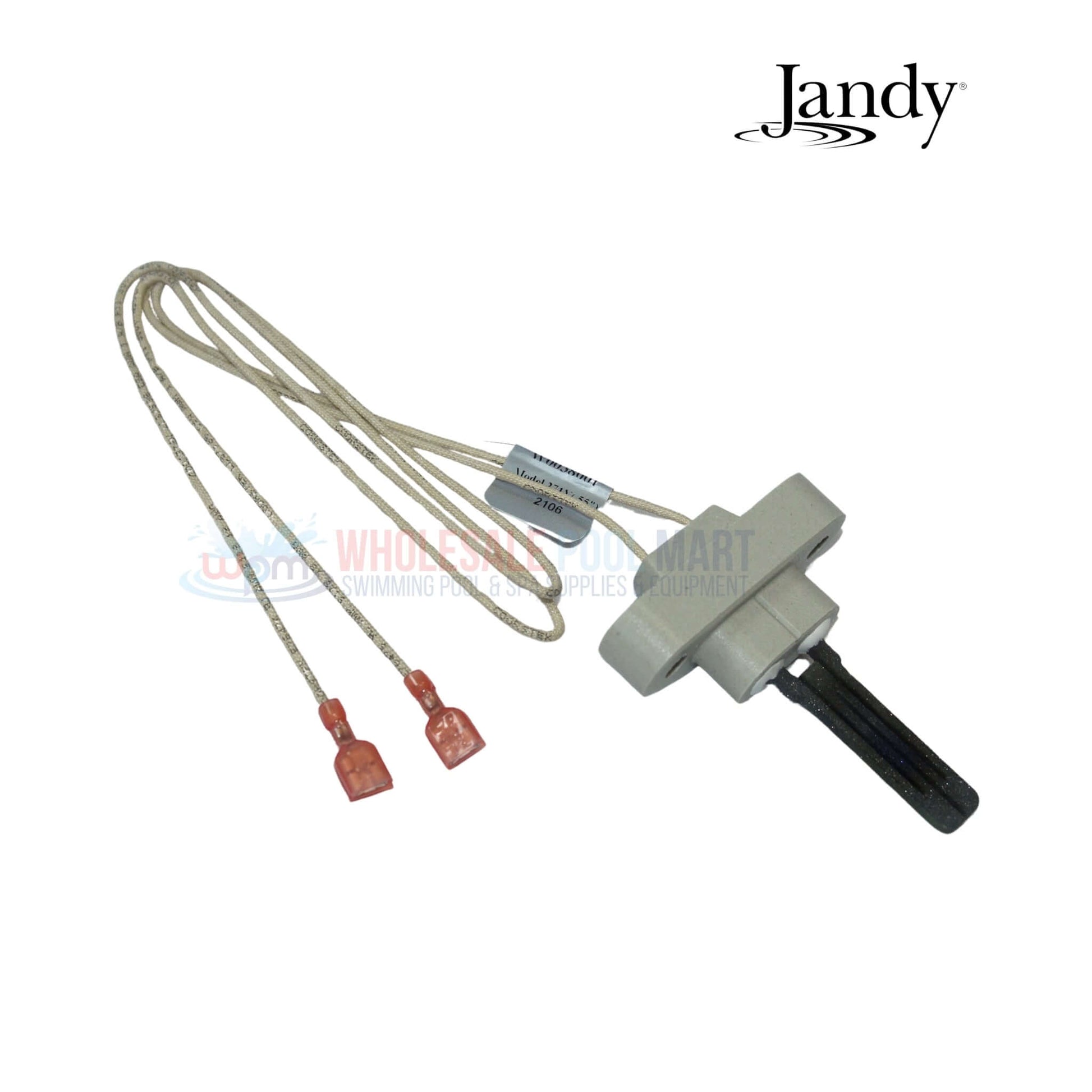

OEM Jandy Ignitor R0317200 is a critical ignition component for Jandy Lite2 LD pool and spa heaters, designed to initiate the heating process with consistent accuracy. Built from rugged silicon carbide, this hot surface ignitor performs reliably under repeated heating cycles and extreme temperatures. It supports a wide range of Lite2 LD heater models with BTU ratings from 125 to 400. This OEM replacement ensures smooth heater startup and efficient combustion. For optimal safety and performance, replacing the ignitor gasket during installation is recommended to ensure a proper thermal seal.
-
Reliable Heat Activation: Triggers consistent and efficient ignition whenever heat is required
-
High-Temperature Material: Crafted from silicon carbide to endure continuous high-heat use inside the combustion chamber
-
Wide Compatibility Range: Supports Lite2 LD heater models from 125K to 400K BTU for flexible replacement use
-
Improves System Startups: Ensures dependable operation, reducing ignition failures or delayed heating cycles
-
Secure Seal Encouraged: Replacing the gasket helps maintain combustion safety and overall system efficiency

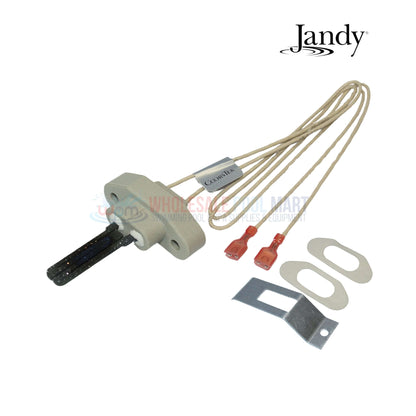

- (1) Ignitor

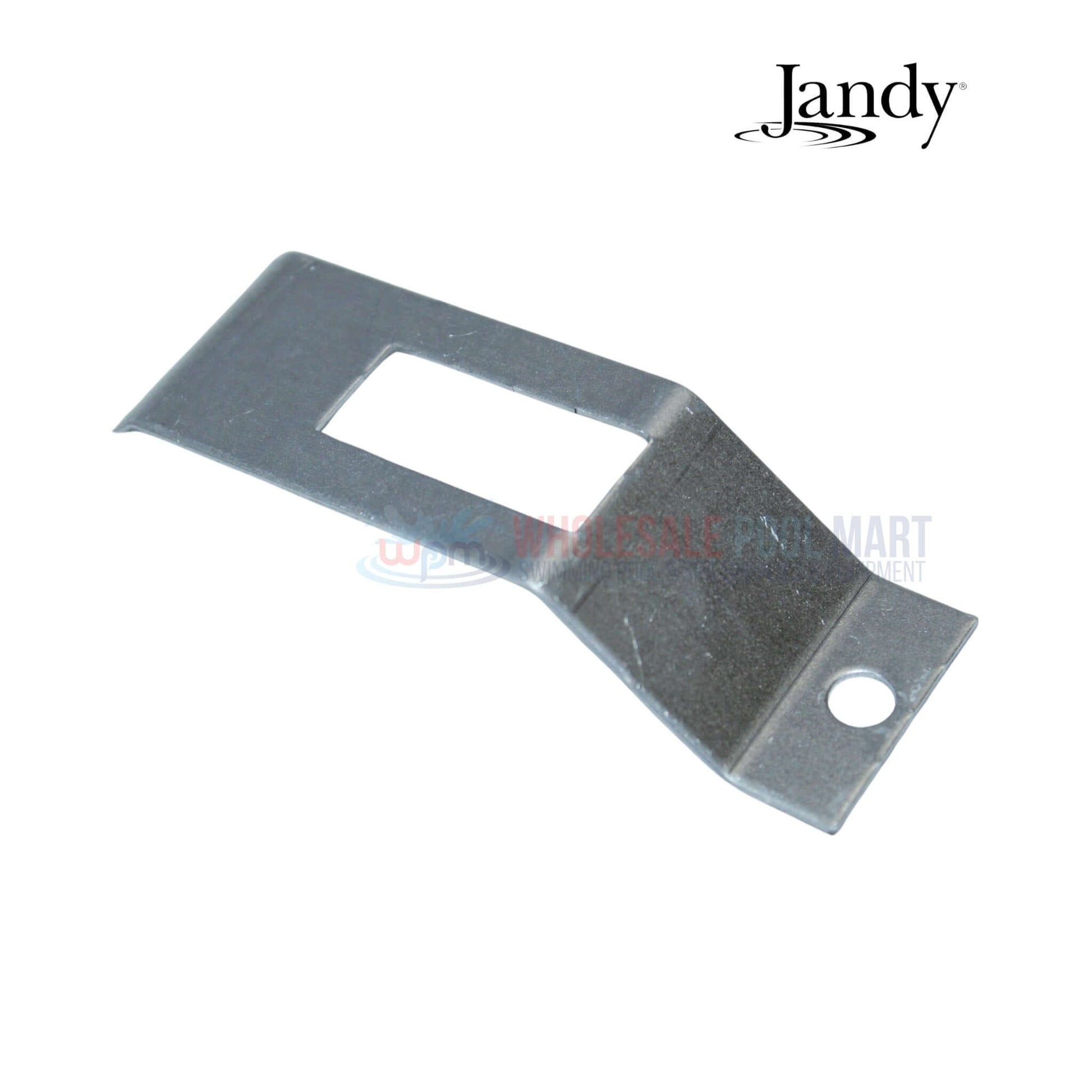

- (1) Bracket
- (2) Gaskets
-
Jandy Lite2 LD Heater Models: LD125, LD175, LD250, LD325, LD400
