Jandy R3008800 User Interface | Universal Controller Display

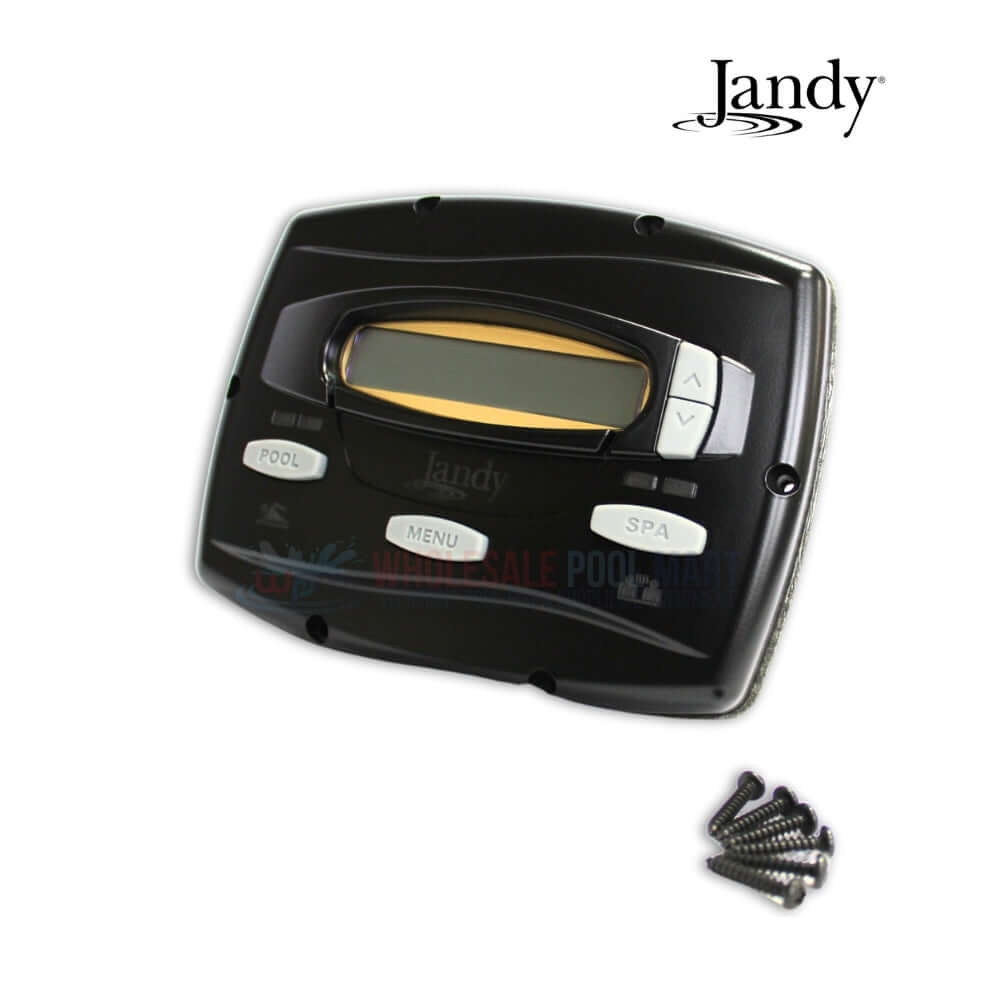

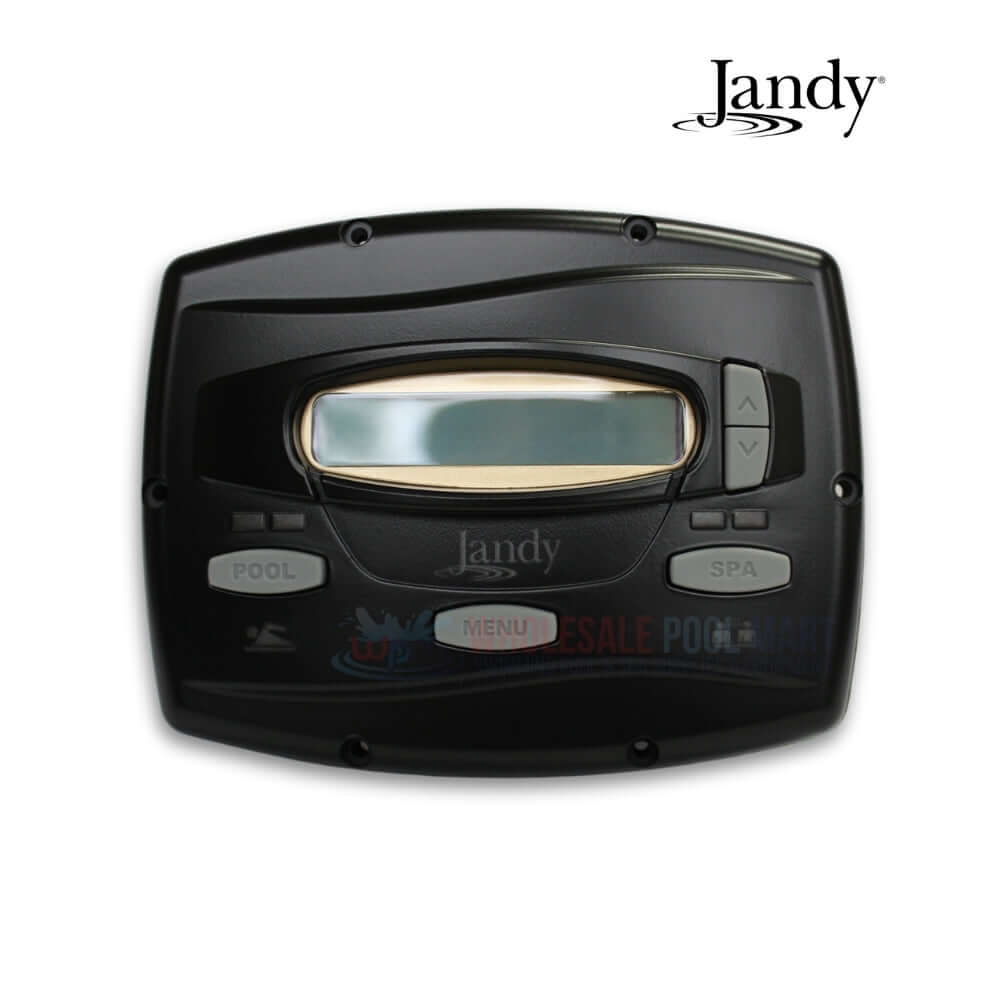

OEM Jandy Universal Controller User Interface R3008800 provides a simplified way to monitor and manage your pool or spa system. Designed to work with Jandy Aqualink RS and PDA systems, this user interface offers real-time control of pool temperature, lighting schedules, and pump cycles. Its sleek design and responsive controls make pool automation accessible for users of all experience levels. Durable and easy to install, this interface ensures you stay connected to your equipment with clarity and precision. Note: The matching AE-TI control cover (R3000601) is not included and has been discontinued.

Note: This Jandy Universal Controller User Interface Part# R3008800 does NOT include a cover. The corresponding cover, Jandy Control AE-TI Control Cover Part# R3000601, is sold separately. However, it has been discontinued by Jandy and is no longer being manufactured.

Highlights

• Designed for Aqualink RS & PDA Systems: Ensures compatibility with Jandy automation setups for smooth operation

• Simplifies Pool Control: Intuitive menu structure makes adjusting system settings fast and user-friendly

• Custom Schedules & Settings: Lets users tailor every aspect of their pool environment for personalized comfort

• Remote Monitoring Enabled: Compatible with mobile remote apps, enabling convenient control from anywhere

• Diagnostic & Energy Features: Supports troubleshooting functions and efficient energy use to optimize performance

User Instructions

Connection to a Secondary User Interface

1. Turn off the power to the heat pump.

2. Remove the four (4) screws that attach the service access panel to the heat pump and remove the cover to the junction box. See Figure 11.

3. Run four (4) 22 AWG solid copper wires into the conduit labeled “Low Voltage Connection” located on the lower right hand side of the heat pump. See Figure 11. The wires may be up to 300 feet (91.4 m) in length.

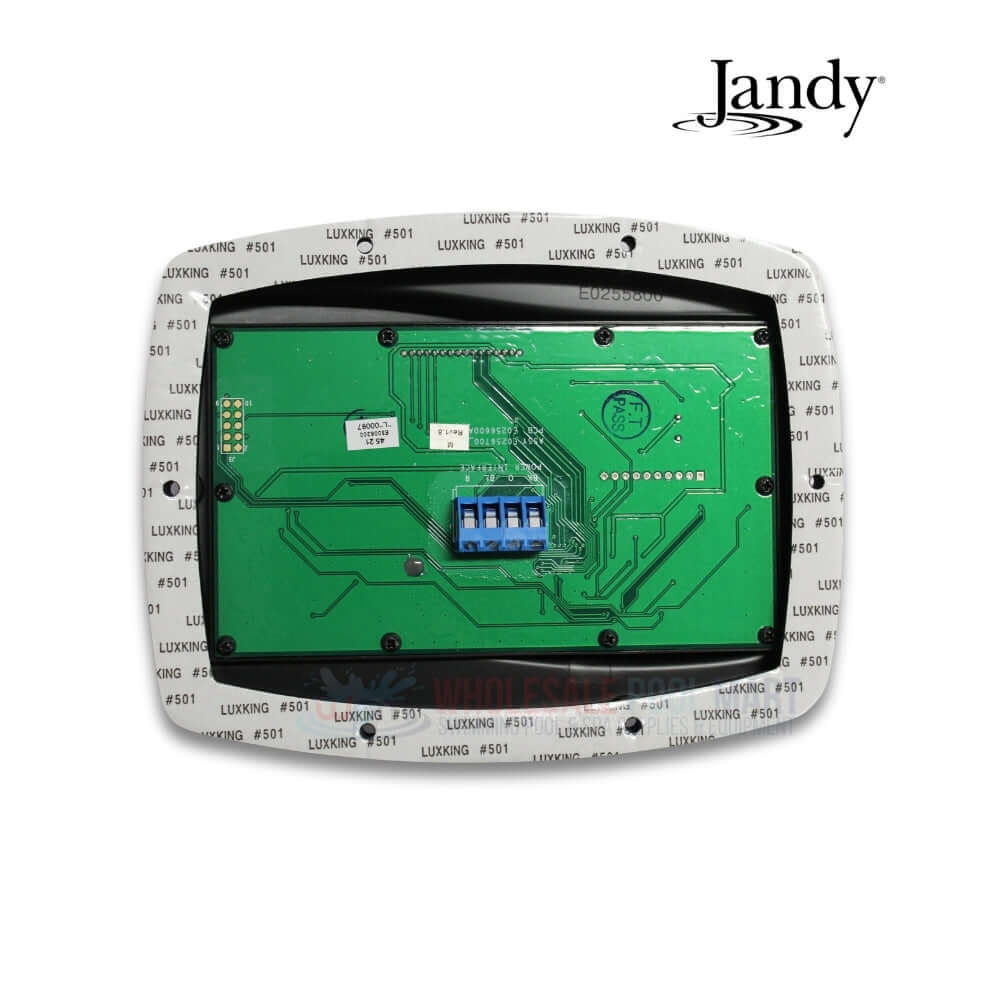

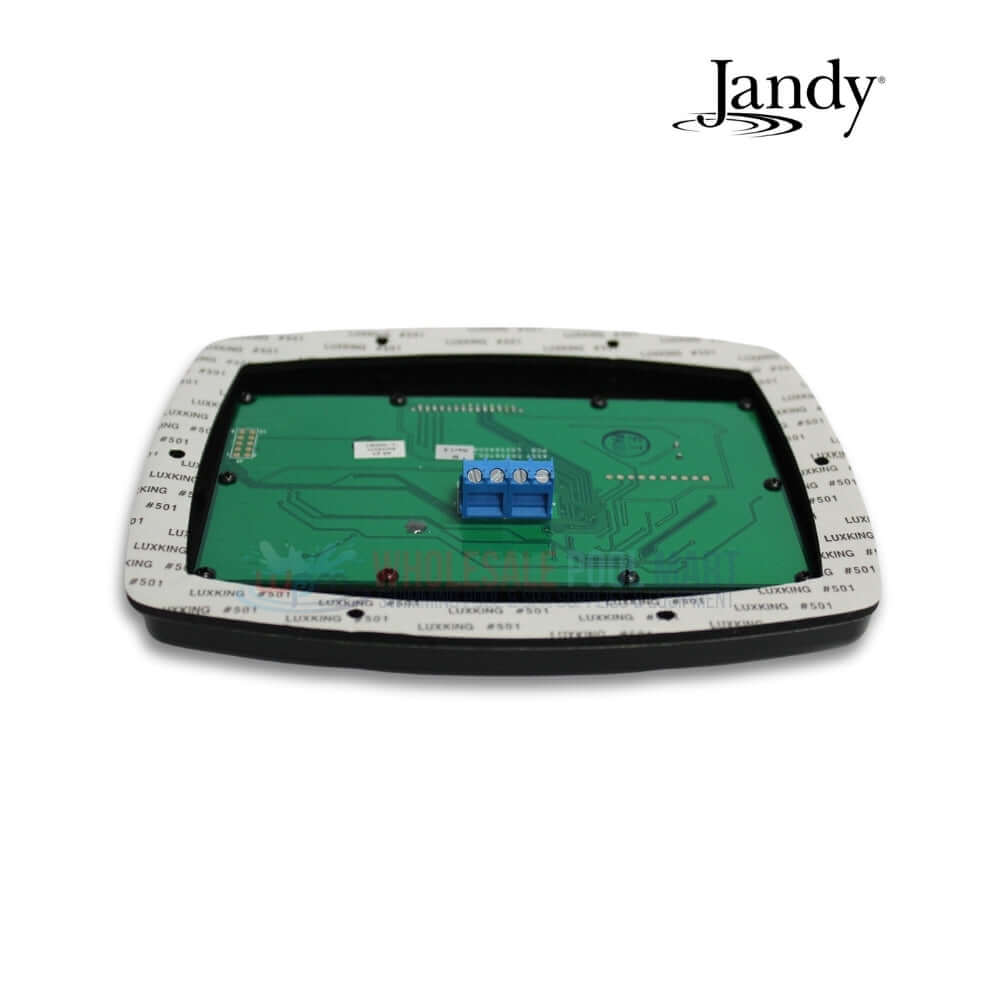

4. Connect the wires to the 4 position terminal on the upper left hand corner of the Power Interface PC Board, labeled “User Interface1”. The wires will be added to the existing wiring to the User Interface installed on the heat pump.

5. Ensure the wiring is consistent when connecting the wires to the second User Interface. For example, BK goes to BK, O goes to O, etc.

6. Re-install the junction box cover and service access panel and restore power to the heat pump

Operating the Controller

• Your new EE-Ti heat pump is controlled by an advanced microprocessor based controller that provides a sophisticated yet simple interface to operate your heat pump for maximum efficiency and enjoyment of your pool. To locate the control buttons, see Figure 15.
• 5.2.1 Off Mode When the control panel is turned off, the screen displays HEAT PUMP is OFF PRESS Pool or Spa.
• 5.2.2 Pool Mode - (Normal Heat) To enable the pool mode, press POOL. The associated left green LED indicator will light and the unit will display SET:xxx° on the screen.

Spa Mode - (Normal Heat)

• To enable the spa mode, press SPA. The  associated left green LED indicator will light and the unit will display SET:xxx° on the screen

Note:

• XXX on the screen represents the current temperature setting on the control. The default setting for pool temperature is 80°F (26°C). You can change the temperature set point by pressing the Up or Down button. Repeatedly press  the Up or Down button until you reach the desired  temperature set point. After 5 seconds of inactivity, the  new set point is stored in memory. When the water temperature falls to 1 degree  below the temperature setting and after a 5 minute delay, the control will start the heat pump and the associated right LED will light RED.

Note:

• XXX on the screen represents the current temperature setting on the control. The default setting for spa temperature is 102°F (38°C). You can change the temperature set point by  pressing the Up or Down button. Repeatedly press the Up or Down button until you reach the desired  temperature set point. After 5 seconds of inactivity, the new set point is stored in memory. When the water temperature falls to 1 degree below the temperature setting and after a 5 minute delay, the control will start the heat pump and the associated right LED will light RED.

Compatibility

• Jandy Legacy (TM) LRZE Heater Models: 125-400 (2009-Present)
• Jandy AE-Ti Series Heat Pump Models: AE1500-AE3000 (manufactured from 2006 - 2009)
• Jandy EE-Ti Series Hat Pump Models: EE1500-AE3000 (manufactured from 2010 - 2013)
• Jandy's Aqualink RS and PDA systems


Additional Info

R3008800 Interface For Local Jandy Automation Panel Replacement

R3008800 fits Jandy Aqualink RS and PDA pool/spa systems

locally available – supports heater, lighting, and pump control

upgrade old AE-Ti/EE-Ti panel setups with new user interface

compatible with LRZE heater models and older heat pump lines

restore pool automation functionality with R3008800

Local Pickup – R3008800 Universal Controller Display

used by local pool pros for intuitive Jandy system programming

includes navigation controls for lights, timers, and spa heat

available locally for replacing outdated Jandy interfaces

install on supported Jandy pool systems 2006 and newer

does not include cover – AE-Ti control cover is discontinued
