Raypak Switch Decal Membrane For Heaters | 009492F
Fits these models (3)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 3 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

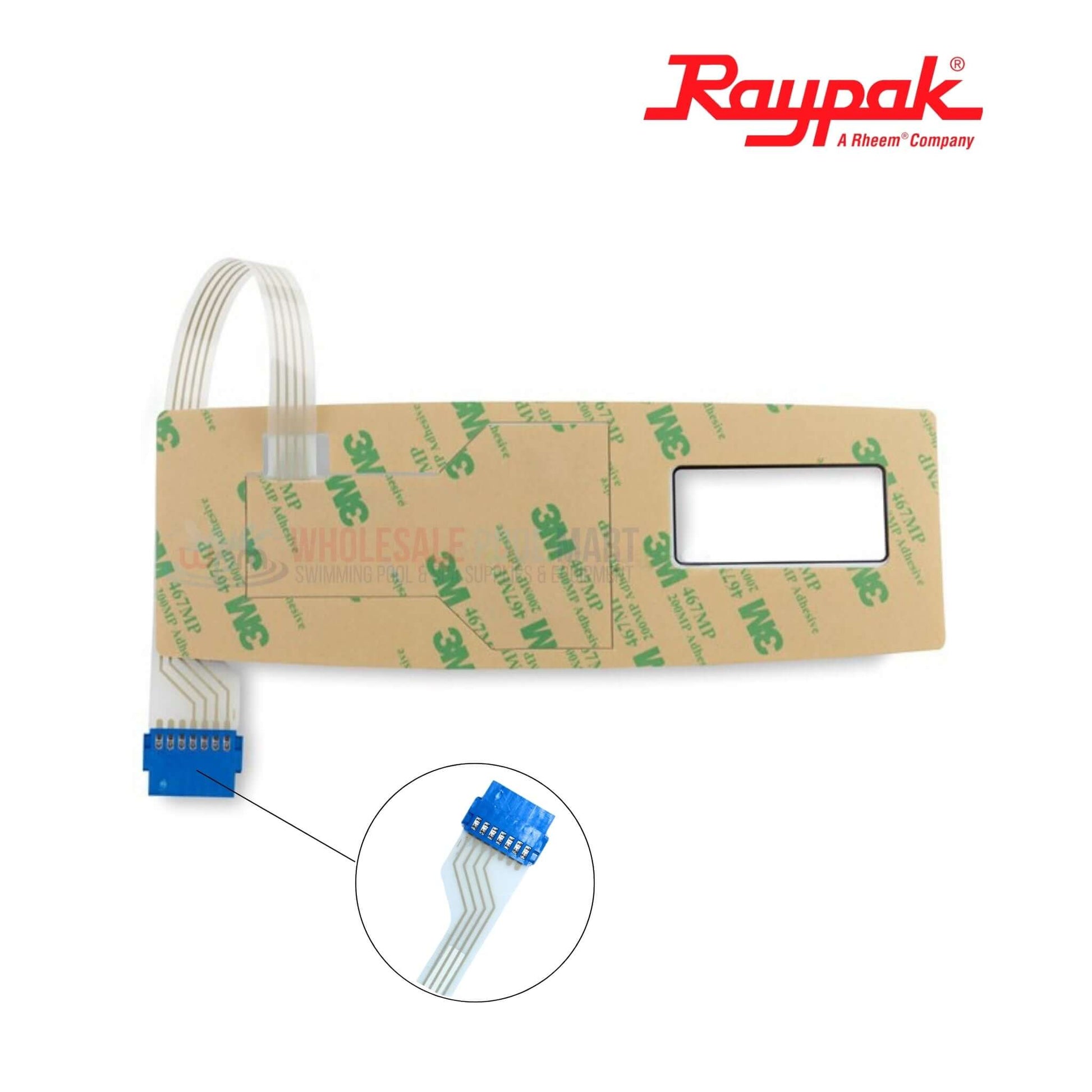

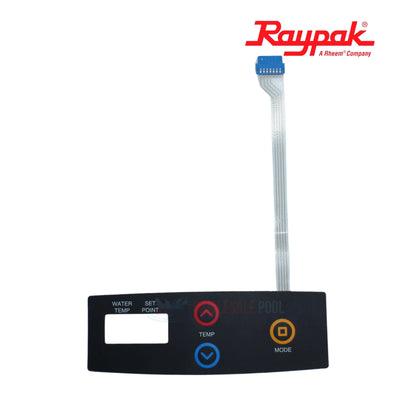

The OEM Raypak Switch Decal Membrane for Heaters, model 009492F, is a user-friendly and durable replacement part designed to ensure easy operation of your Raypak heater. This membrane features clearly marked switch decals, making it simple to navigate and control your heating system. Whether you are conducting routine maintenance or performing a repair, this high-quality switch decal membrane helps maintain the functionality and aesthetic appeal of your heater's control panel. Its robust construction promises longevity and resilience, providing a reliable interface for managing your heater's operations effectively.
Note: This membrane is for heater models manufactured prior to 5/2011
- User-Friendly Design: Ensures easy operation of your Raypak heater with clearly marked switch decals for simple navigation and control.
- High-Quality Replacement: Perfect for routine maintenance or repairs, this membrane helps maintain the functionality and aesthetic appeal of your heater's control panel.
- Durable Construction: Promises longevity and resilience, ensuring a reliable interface for managing your heater's operations effectively.
- Easy Navigation: Features clearly marked switches, making it straightforward to manage and control the heating system.
- Maintains Functionality: Designed to keep the control panel functional and visually appealing, ensuring your heater operates smoothly.
- Raypak Digital Heater Models: 206A, 266A, 336A, 406A- manufactured prior to 5/2011
- Raypak Digital Low Nox Heater Models: 207A, 267A, 337A, 407A- manufactured prior to 5/2011
- Raypak Heater Models: 185A, 265A, 335A, 405A- manufactured prior to 5/2011
Note: This membrane may be compatible with your heater, please refer to your systems owners manual to ensure compatibility.
Note: This membrane is for heater models manufactured prior to 5/2011
1. Pre-set Pool/Spa Set temperature (Set at 104F if Remote has independet thermostat)
2. Turn Power Off , wire Remote to 7-pin/3-wire pigtail , turn Power On
3. Press Up an Down arrow buttons for 3 seconds until Remote displays on LCD
* This will Enable remote operation and Disable the touchpad.
4. Remote Pool or Remote Spa Displays when remote is activated
